X Assembly cable guides support fabrication

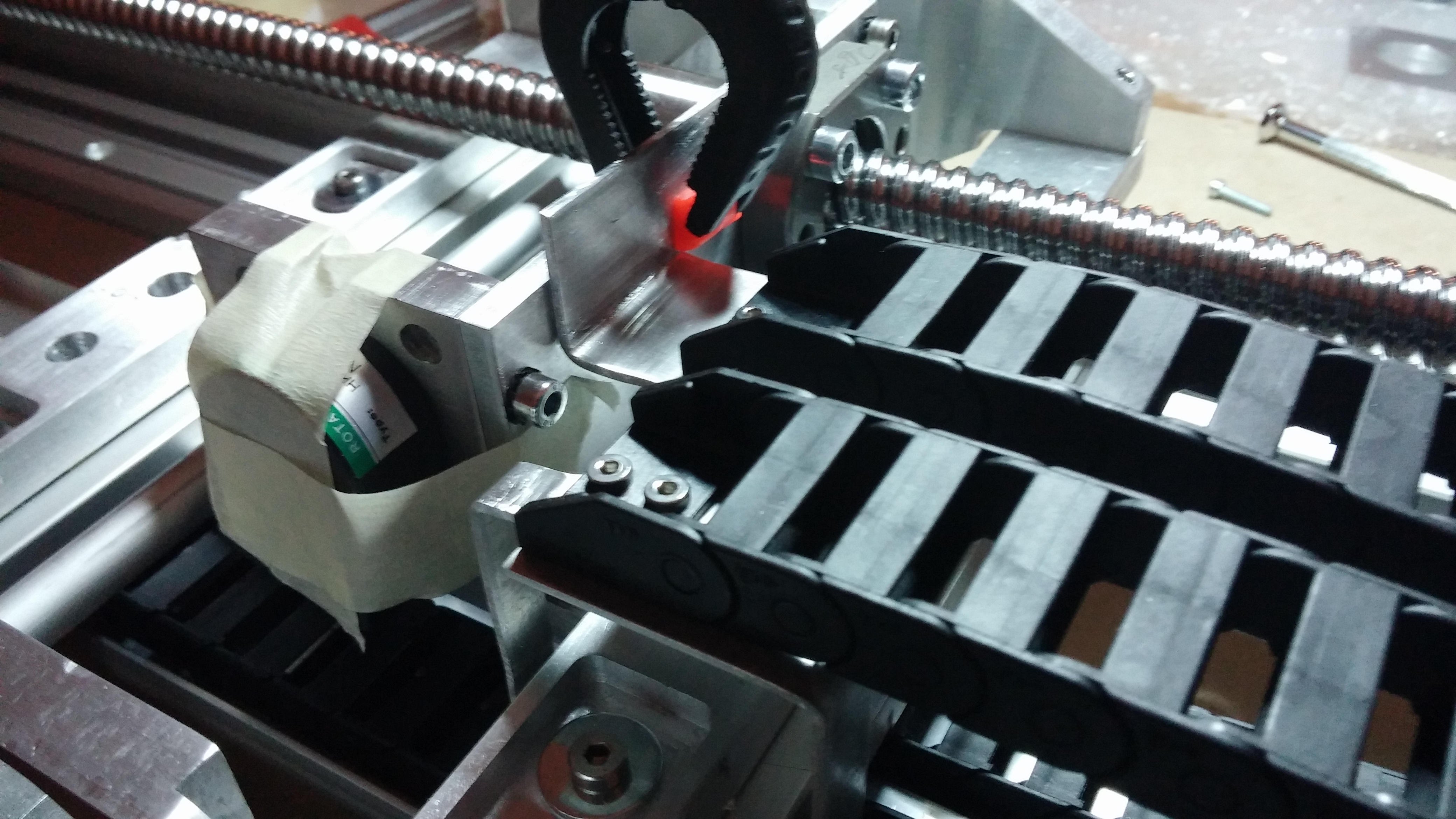

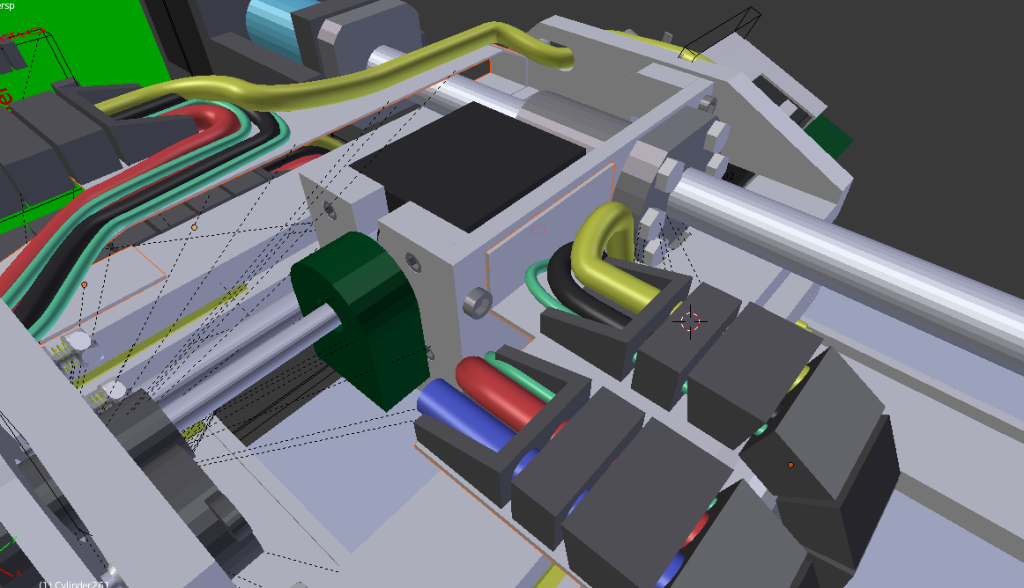

This assembly supports the main cable guides carrying power and data for the X Assembly carriage and also provides a mounting point for the micro switches used to detect the Y movement limits.

XAssembly_Cables_blender

CAM00048

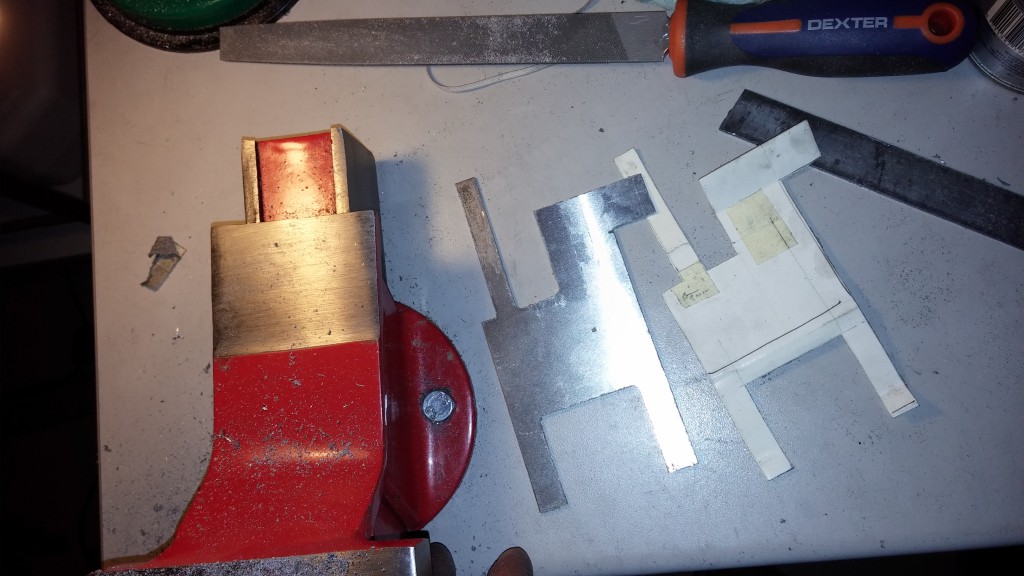

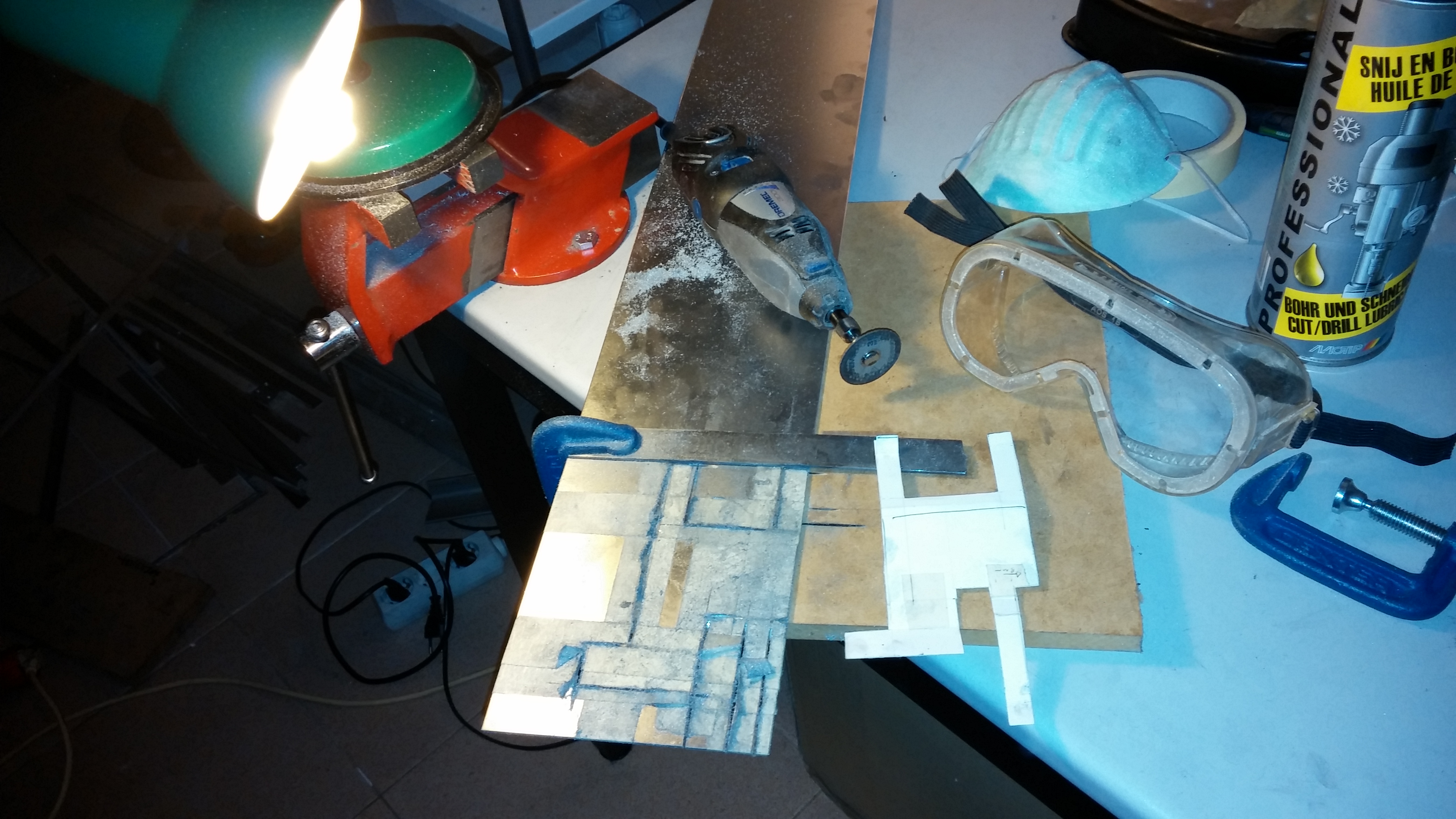

This part is being built from aluminum and acrylic sheet.

CAM00040

CAM00041

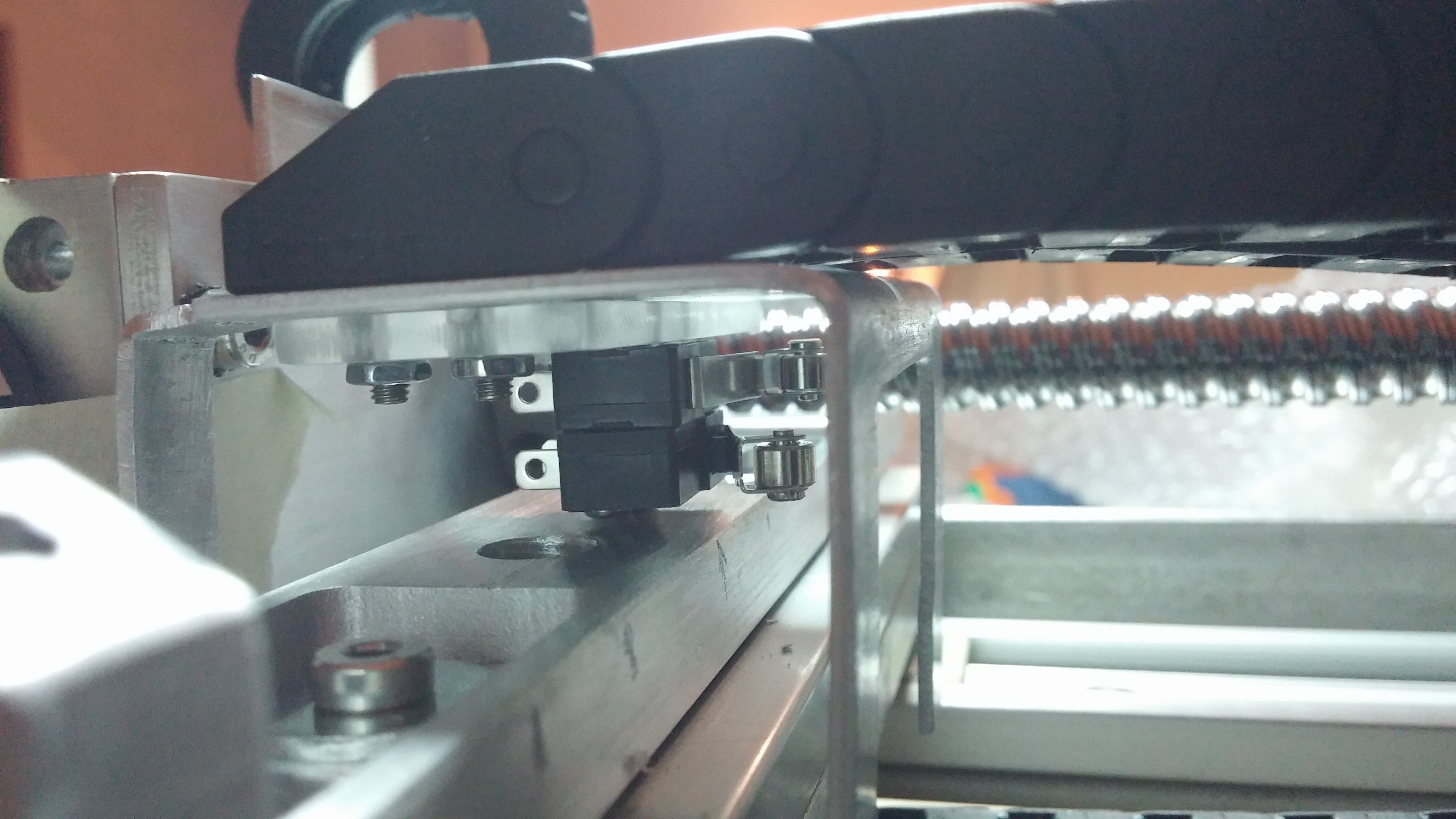

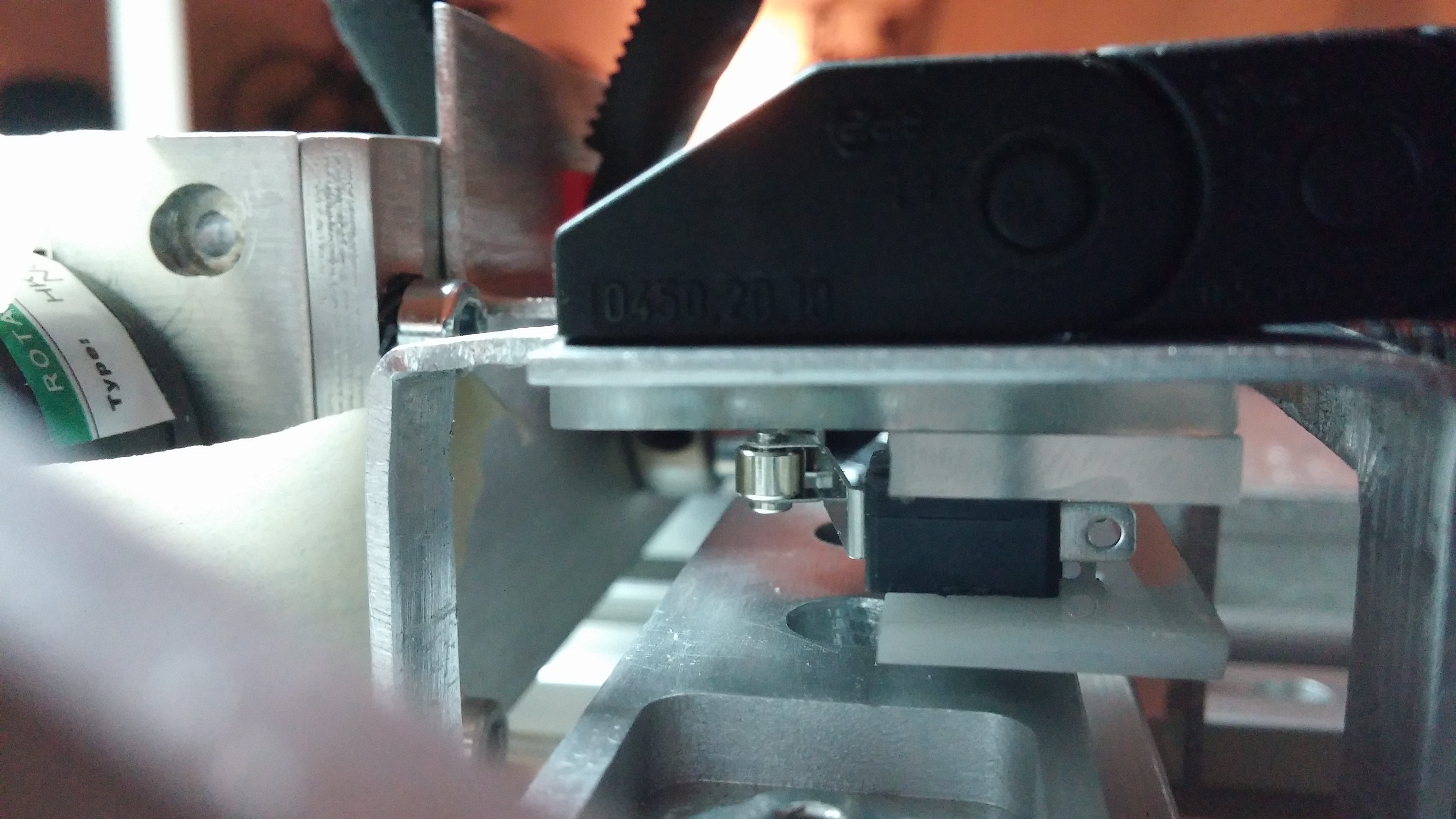

Several arrangements for the micro switches are still being evaluated.

CAM00047

CAM00062

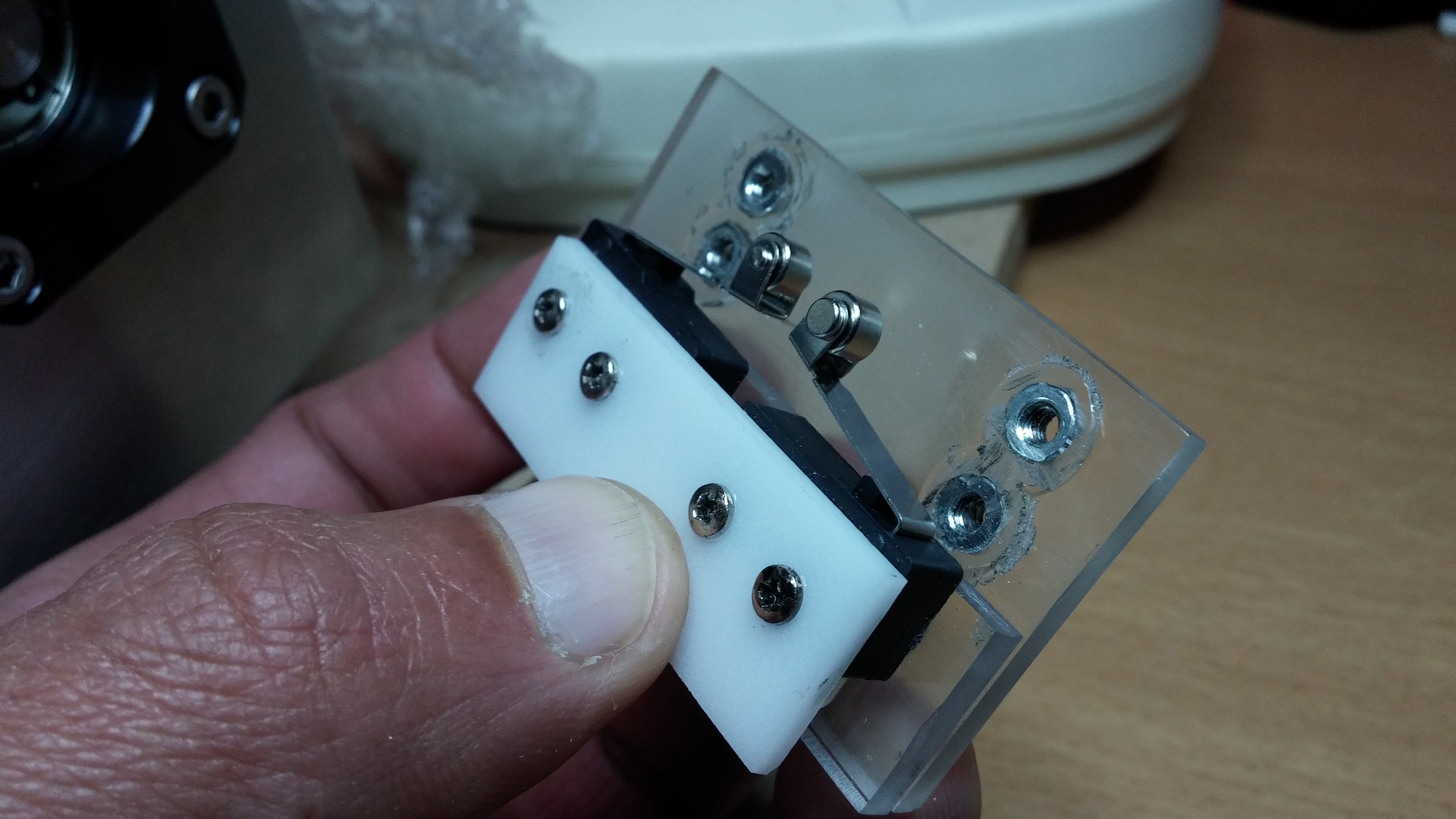

One technique we are using here to save precious space and minimize exposed metal near electric contacts is embedding the nuts into the acrylic using a small soldering iron to heat the nut and press it into the acrylic part.

CAM00069

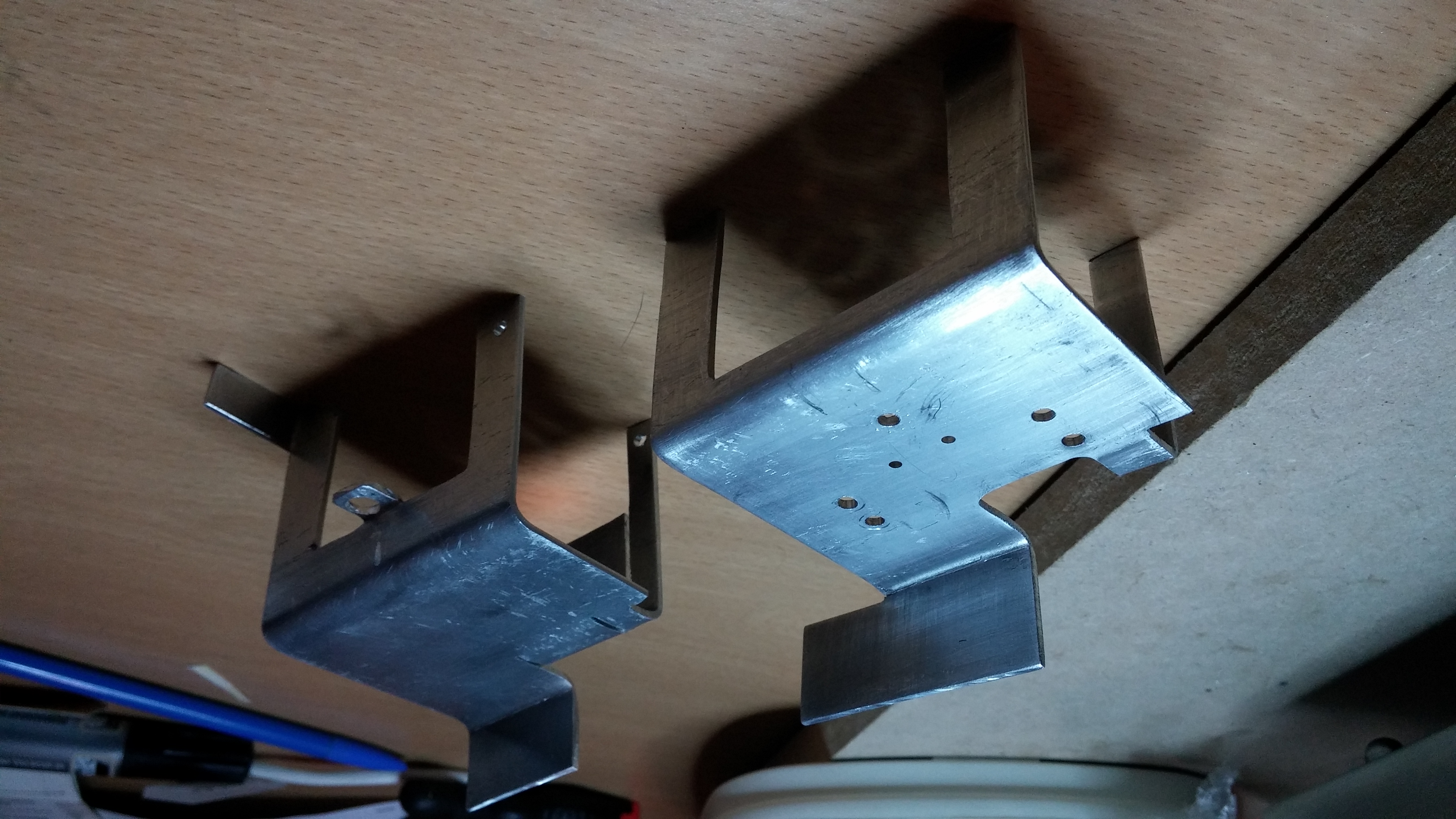

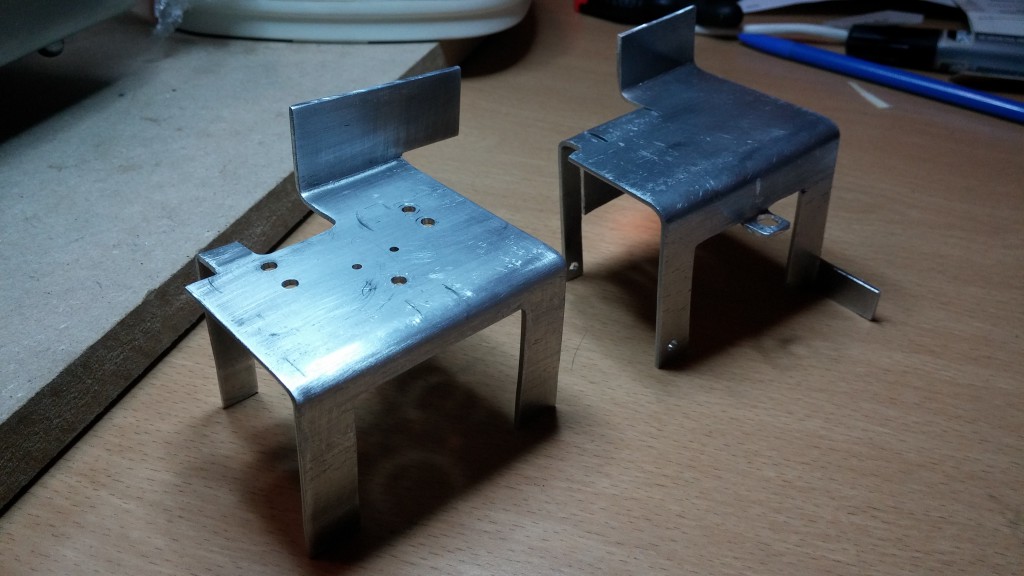

The final design for the aluminum sheet part is not yet decided. Until then we keep fabricating several versions of it 🙂

CAM00067

Notes on aluminum fabrication

This was the first time we ventured into aluminum fabrication using a CNC milling machine. The majority of the voind robot parts were designed to be fabricated from aluminum bar using a CNC milling machine.

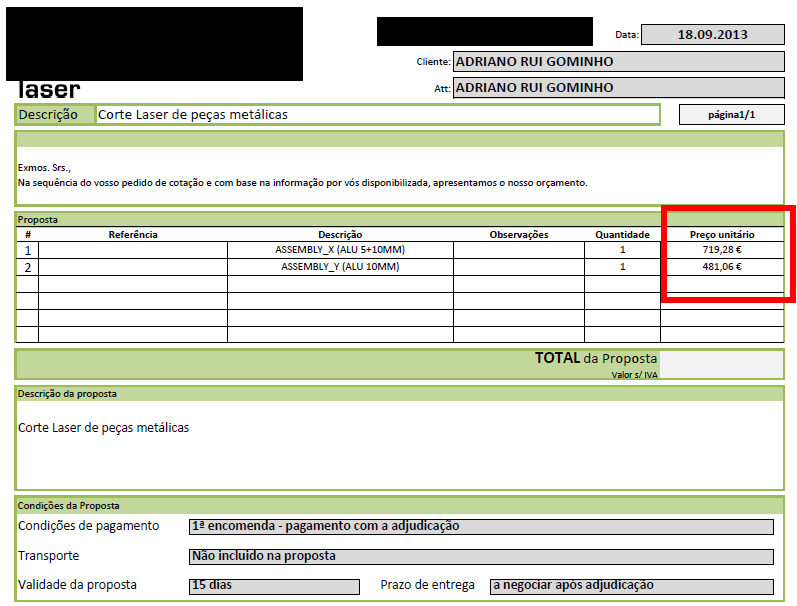

Soon into the project we realized how expensive it would be to have these parts sourced from specialized shops. We were quoted with hundreds of euros for a single aluminum part and we would need to fabricate more than 20 different parts!

Proposta_Laser

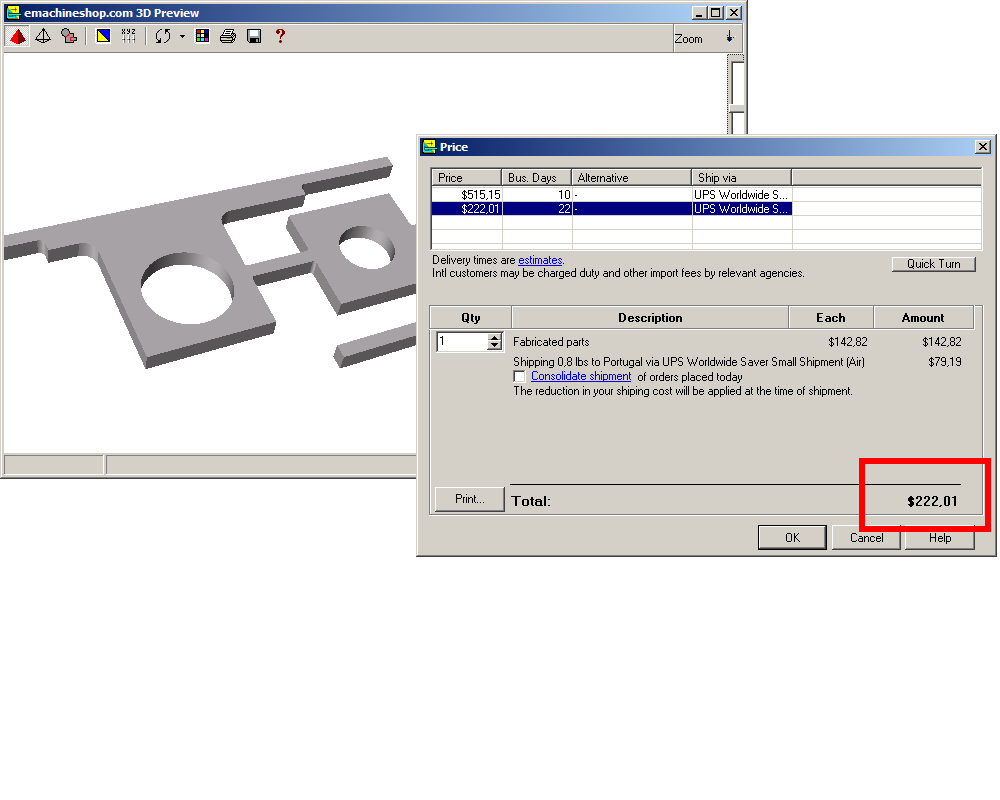

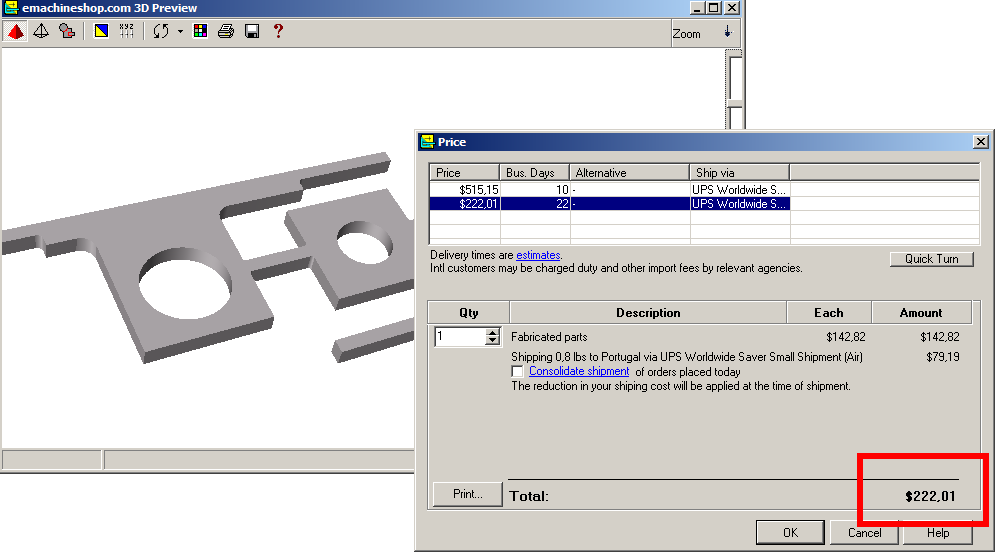

Online metal fabrication shops like eMachineShop were also evaluated but were still too far outside our budget.

OnlineShopQuote

Apart from this we feared we would end up doing several iterations before we obtained exactly the required part, specially because we lacked the knowledge and experience to spec the parts correctly.

So we decided to try and do it ourselves all the way from the 3d files up to the actual part machining.

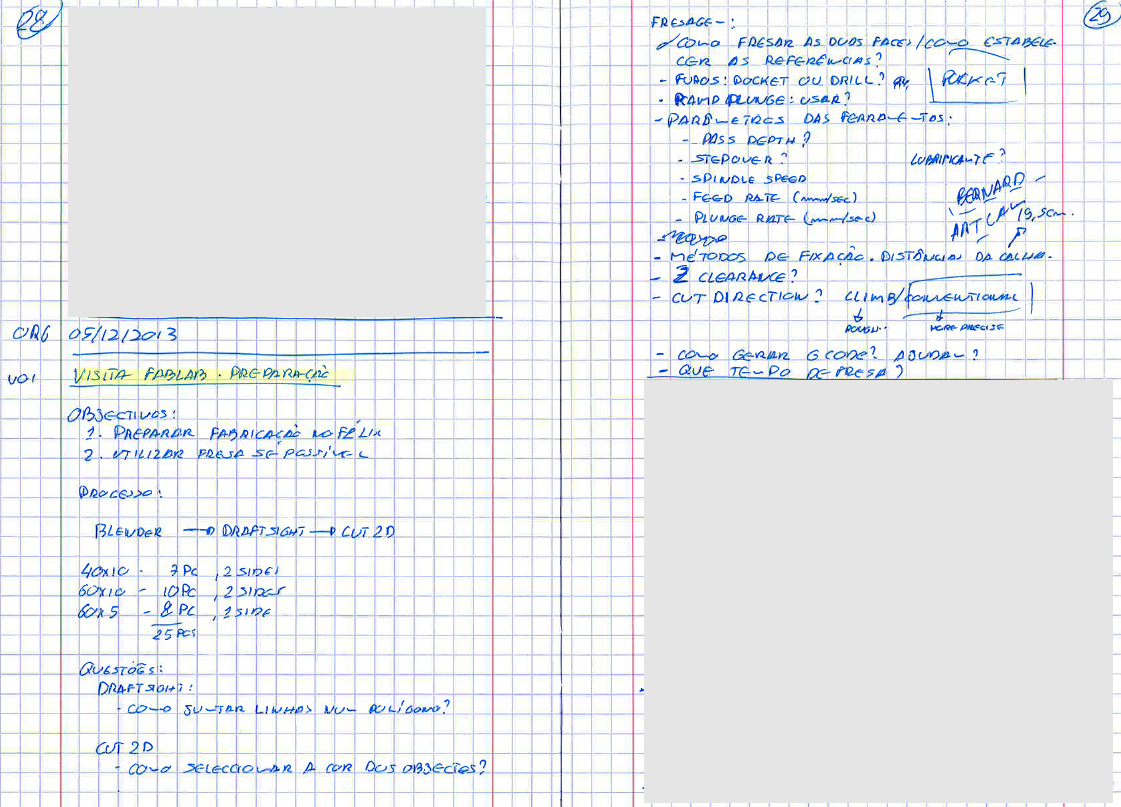

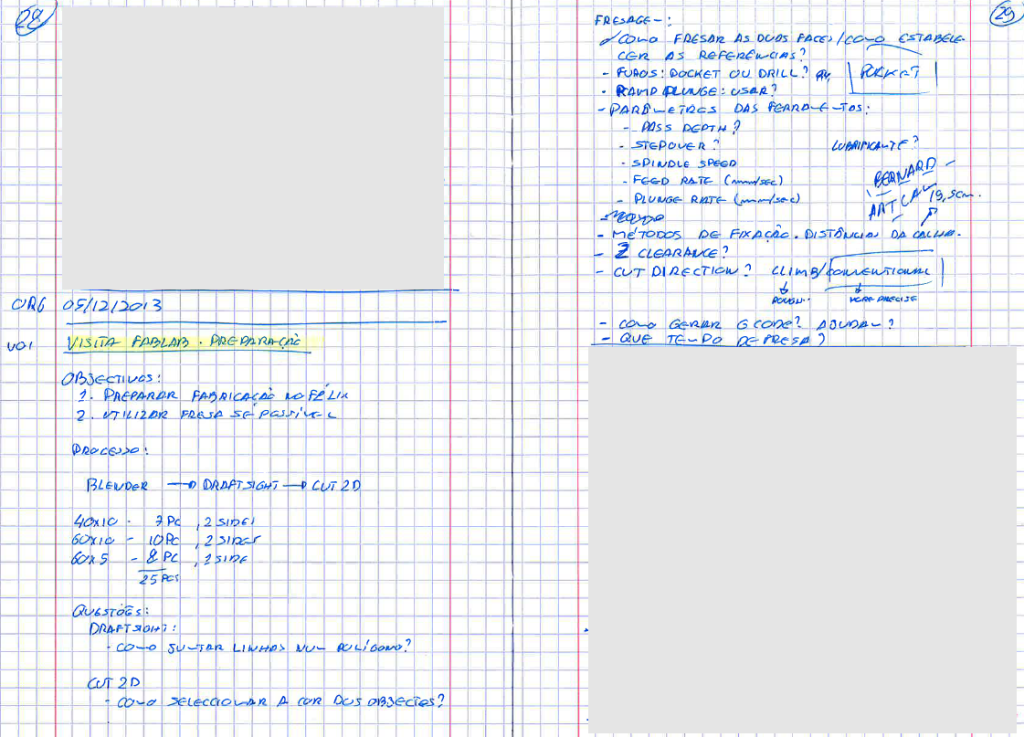

We started by visiting a local fablab shop where we met knowledgeable people who introduced us to the basic tools and techniques used to create the parts drawing files and prepare them to be submitted to the milling machine.

FabLabEDP_Notes

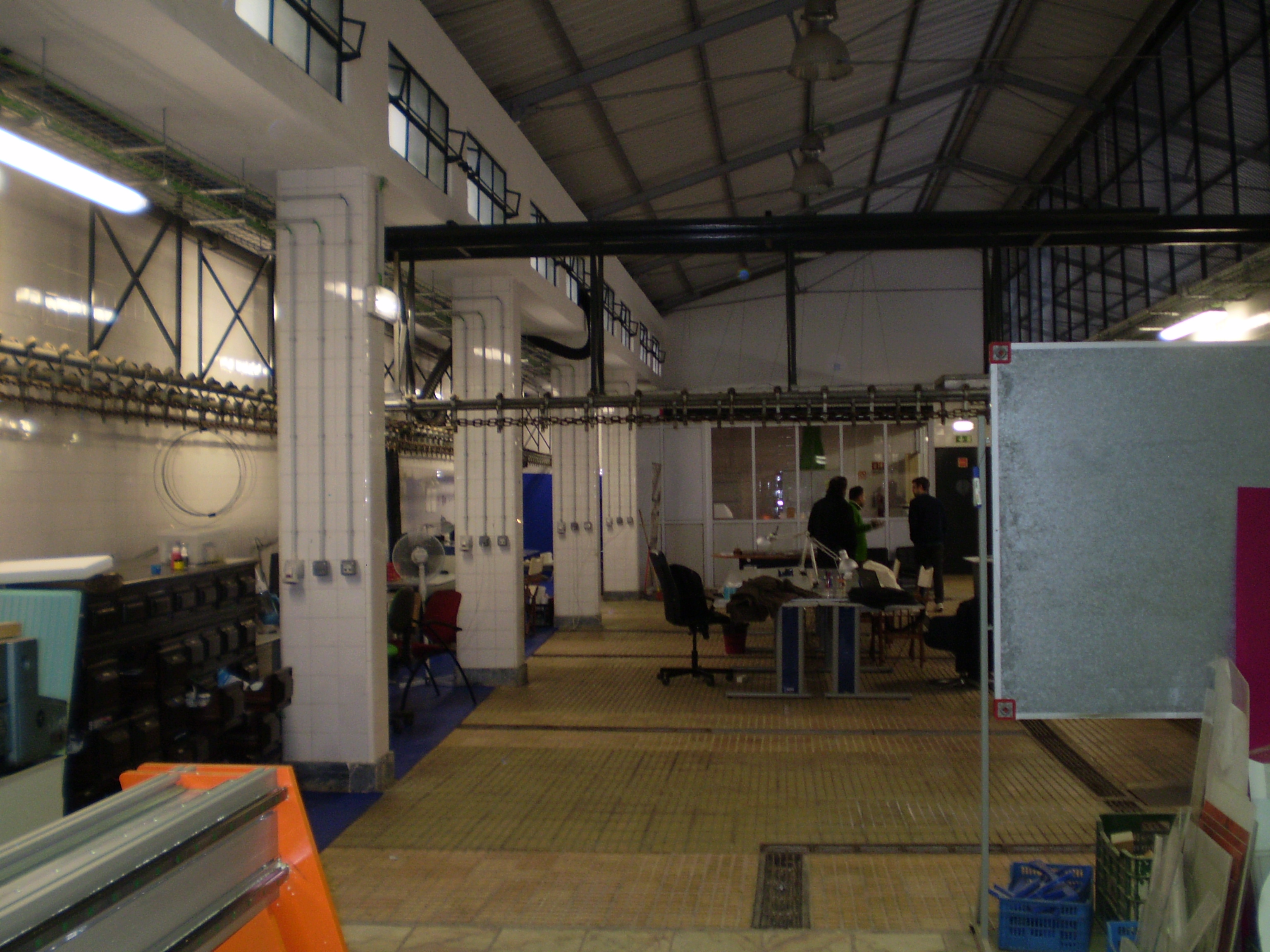

Unfortunately this particular fablab shop had their milling machine already booked for the dates we planned. However they kindly introduced us to another fablab shop where we could book the milling machine for specific dates which were compatible with our calendar.

OLYMPUS DIGITAL CAMERA

Isn’t it wonderful to have access to such an array of resources, tools and knowledge?

If you happen to have a project or idea and you are stuck with how to realize the physical aspect of it, search for the closest fablab and pay them a visit.

Mills and Milling parameters

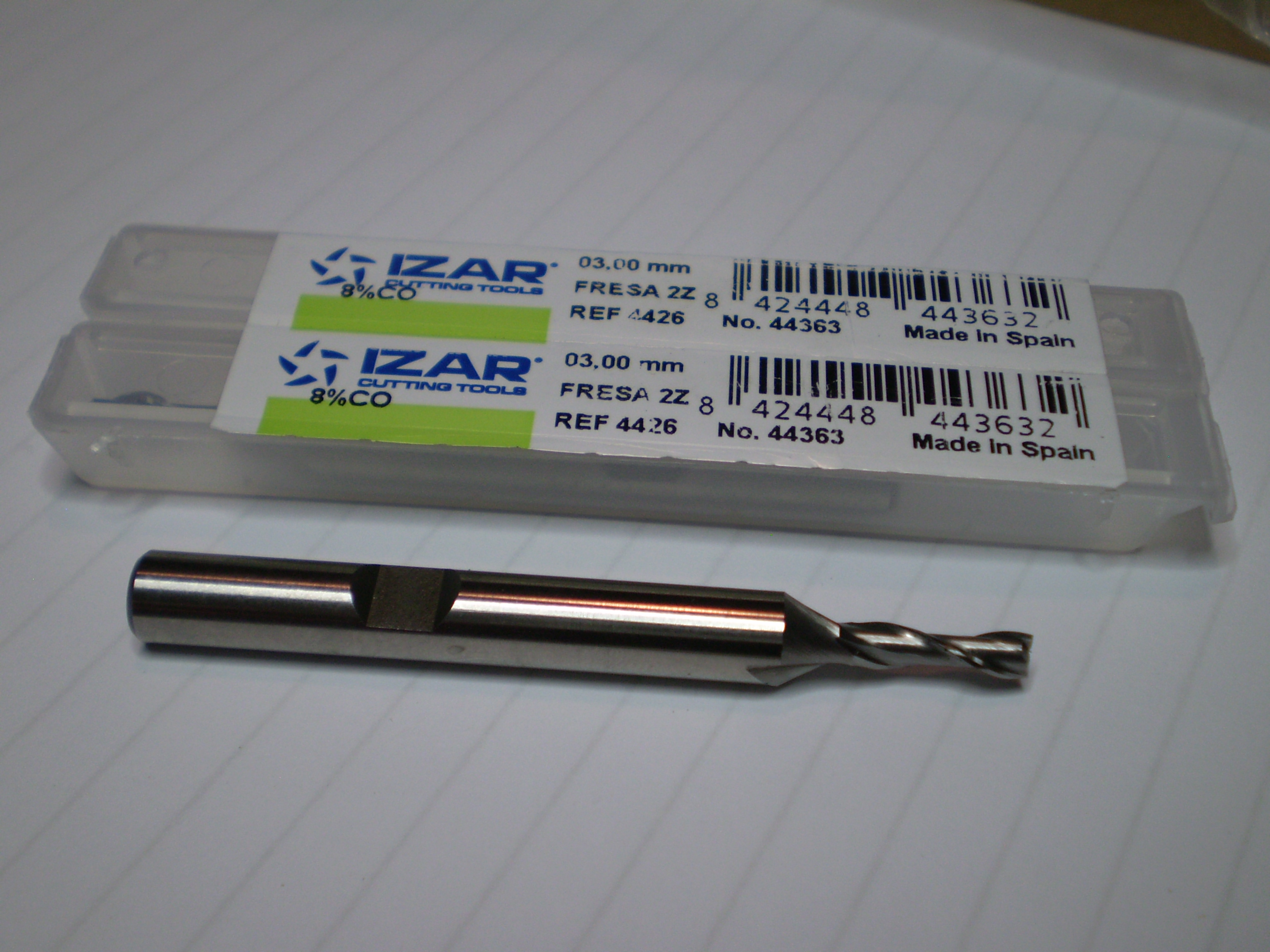

After several broken mills we set on 3mm HSS + 8% CO end mills:

  • Spindle: 5500 rpm
  • Feed rate: 5mm/s
  • Stepover: 1.2mm
  • Stepdown: 0.75mm

OLYMPUS DIGITAL CAMERA

You can buy these mills from your local specialist tool shop. I bought mine here and here.

Lubrication and cooling

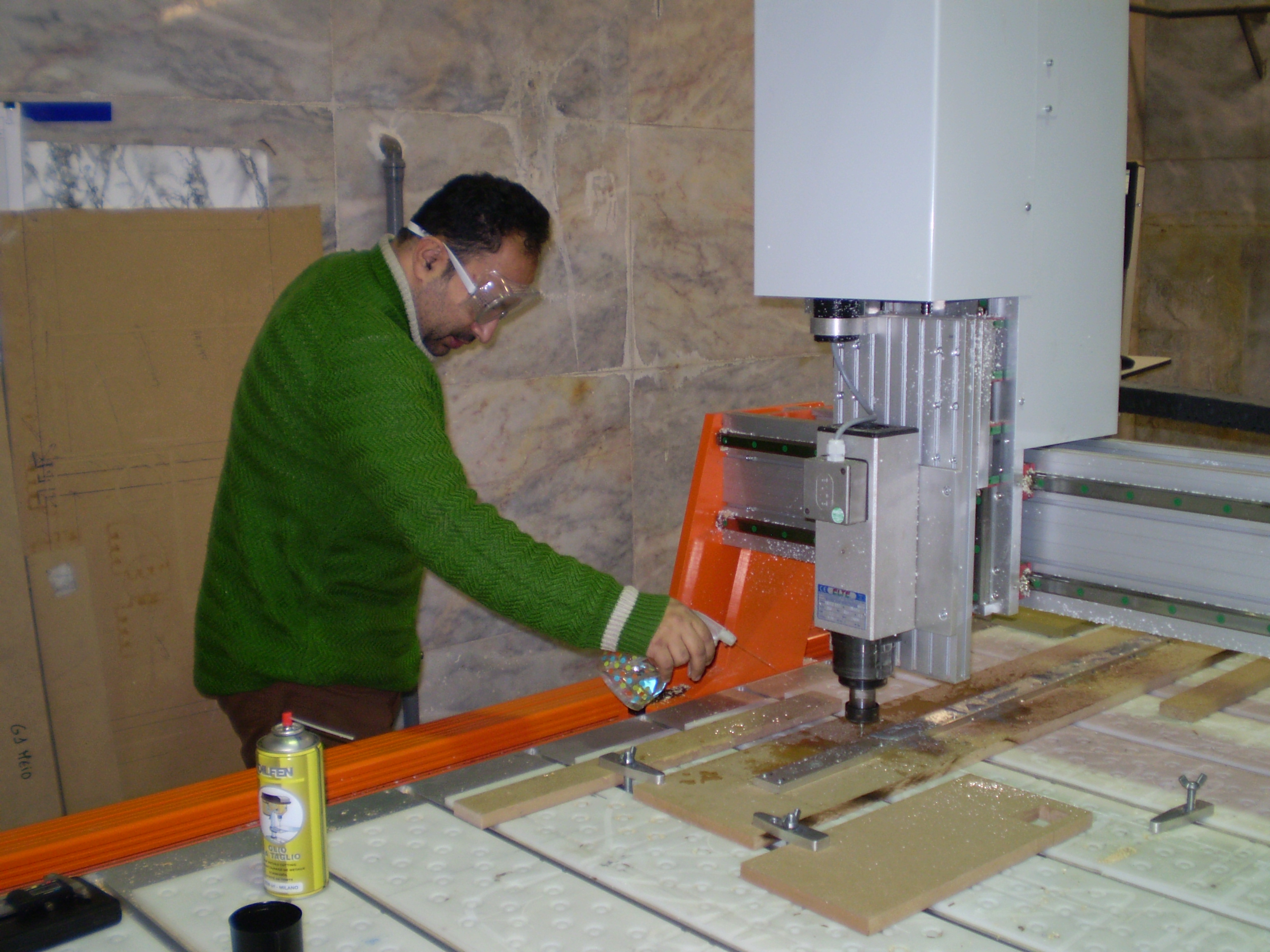

During the milling operation we manually sprayed cutting lubricant and also water to cool things down, specially during the most aggressive phases of the cut, for example when the tool had to start a new cut into the material.

OLYMPUS DIGITAL CAMERA

Sometimes we could feel the generated heat just by touching the aluminum up to 15 cm from the cutting action. The only time we tried to save on the lubricant and water we ended up with a mill literally welded to the aluminum. Not wanting to ruin another mill we diligently kept the spraying action throughout the whole operation.

Material fixing

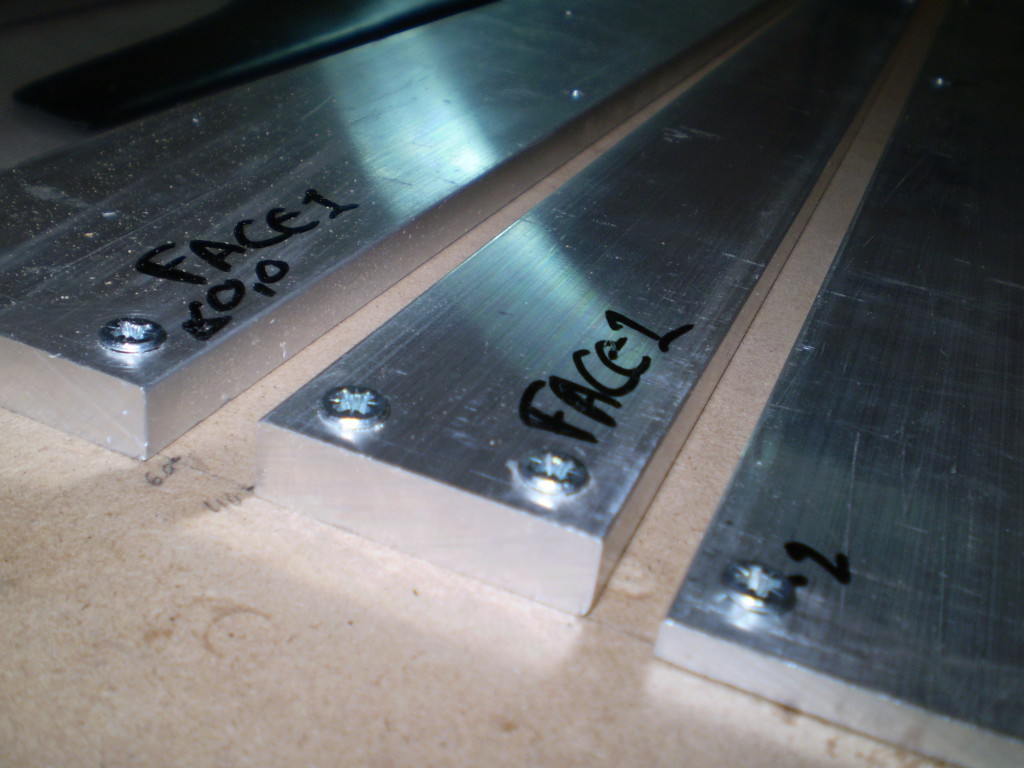

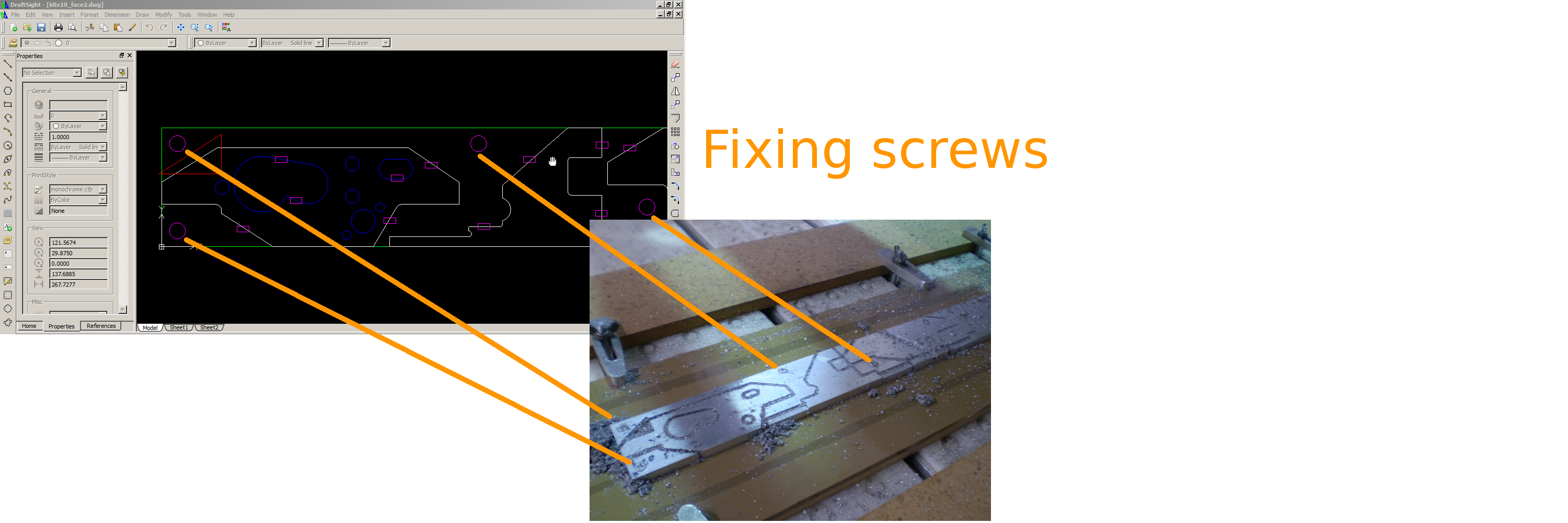

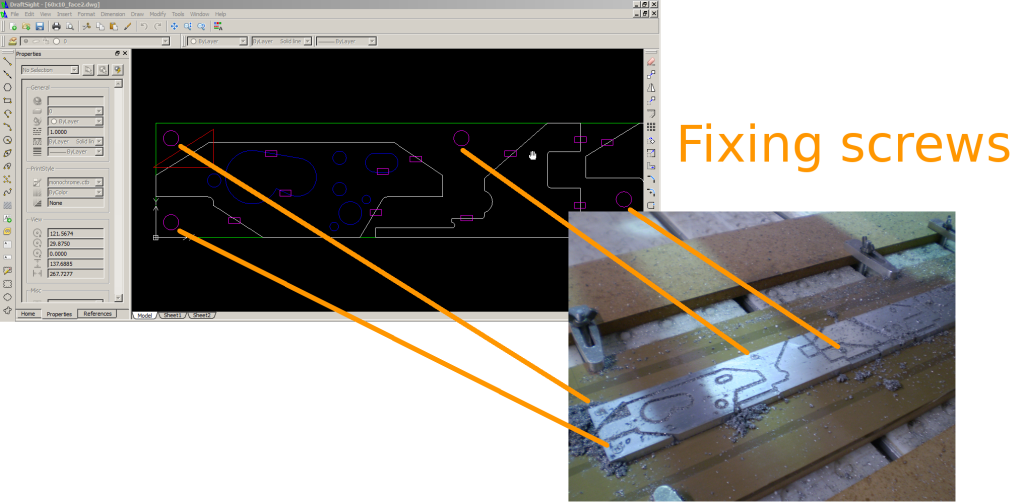

We used MDF as sacrifice boards on which we fixed the aluminum bars using screws. The exact positions of the fixing screws were determined during the layout of the files in preparation for the milling operations. This way we could plan for an affective support of the material during the mill operation and at the same time check that the tool path would not touch any of the screws.

FixingScrews

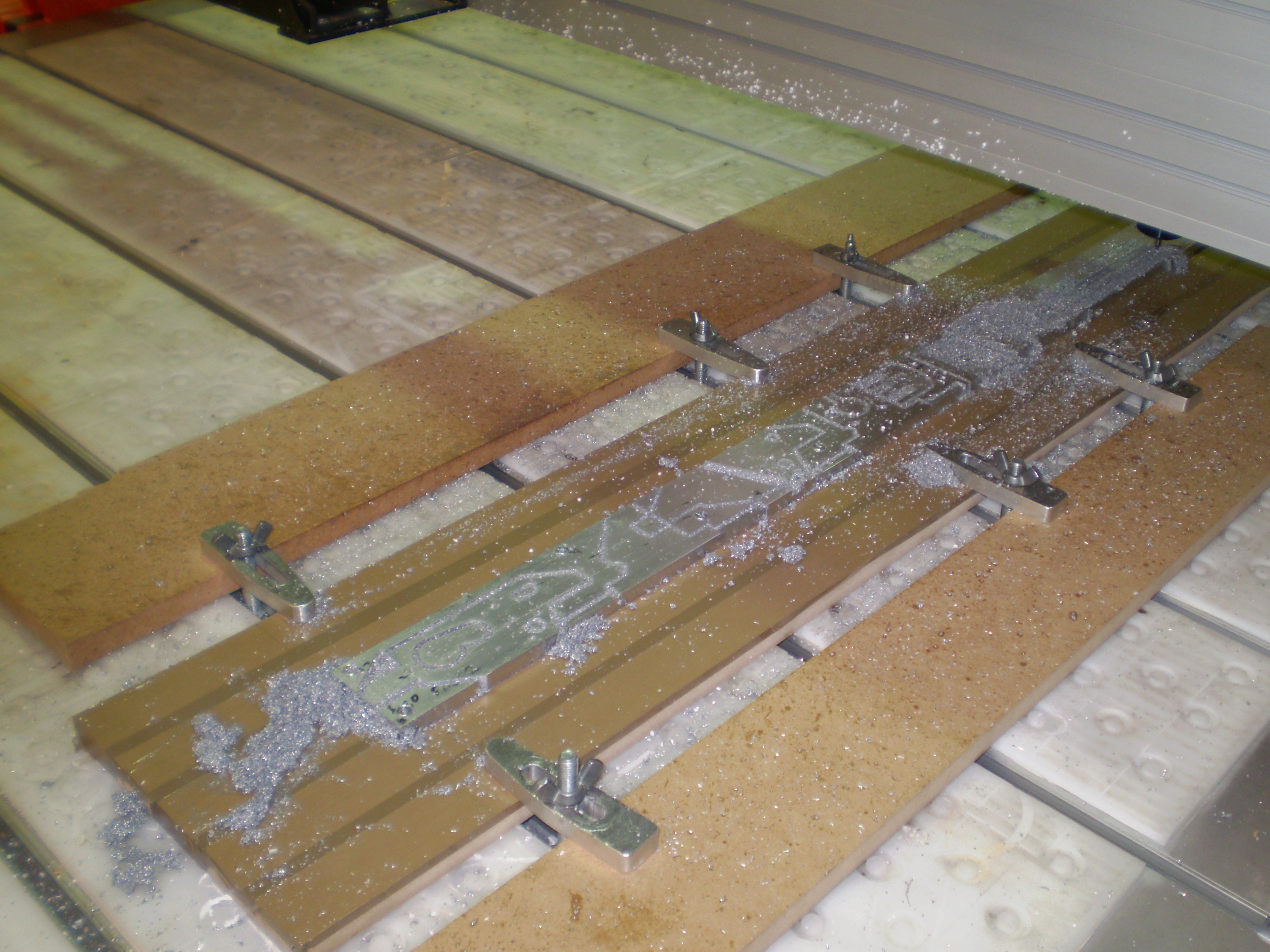

The MDF board was then securely fixed to the milling machine bed using additional MDF scrap boards and clamps.

OLYMPUS DIGITAL CAMERA

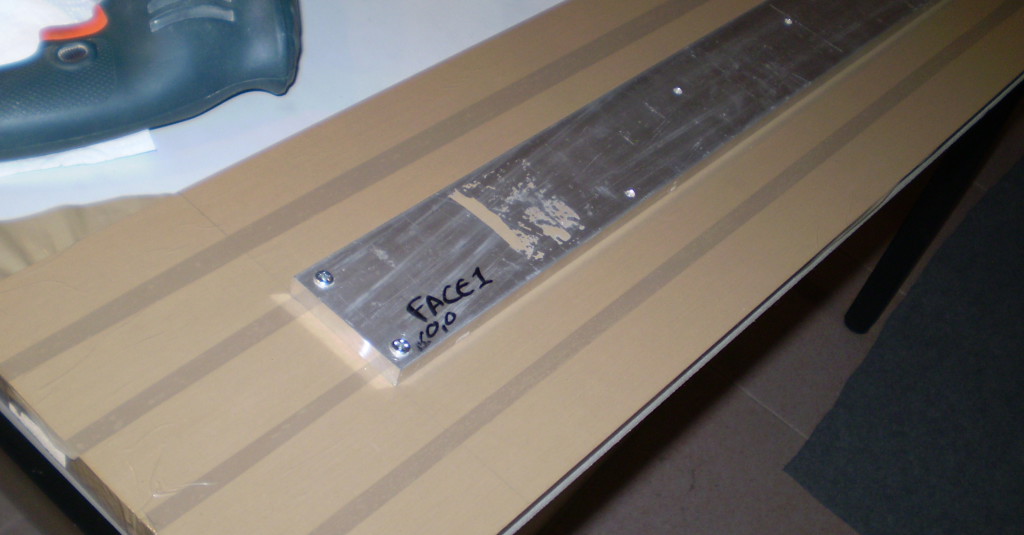

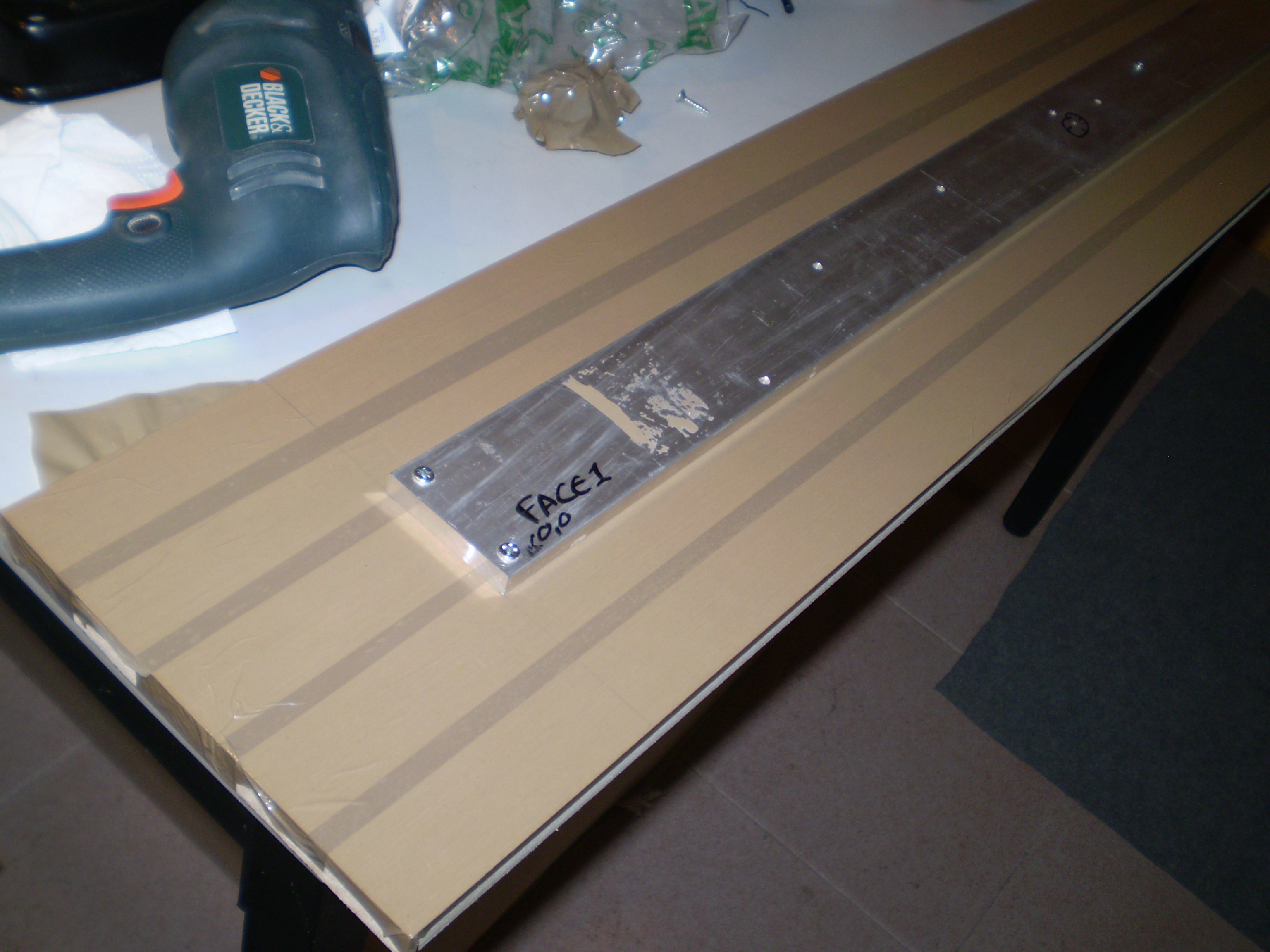

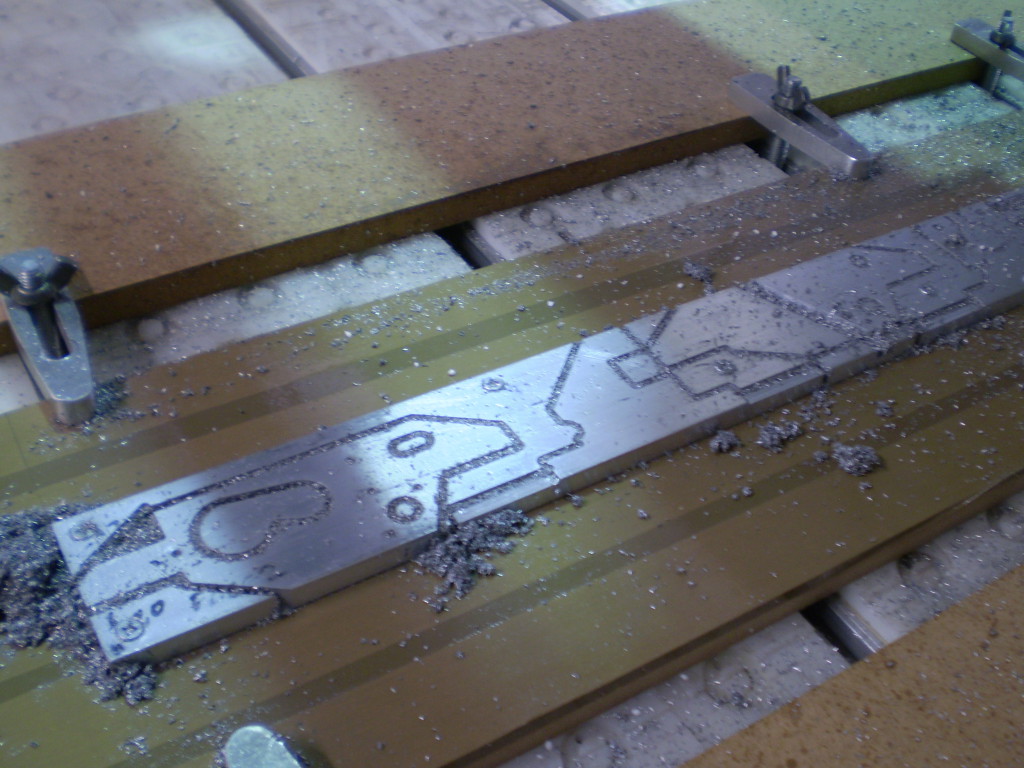

For long sequences of operations where the MDF board would be exposed for significant time to water and lubricant, we first covered the board and edges with adhesive tape.

OLYMPUS DIGITAL CAMERA

However, any drilling operation that drilled into the MDF board acted as a direct injection point of water into the MDF causing it to swell and slightly push the aluminum up, enough to ruin all accuracy in the Z dimension. This led to some ruined parts and on two occasions left parts dangerously loose due to overshooting the cuts in the z axle.

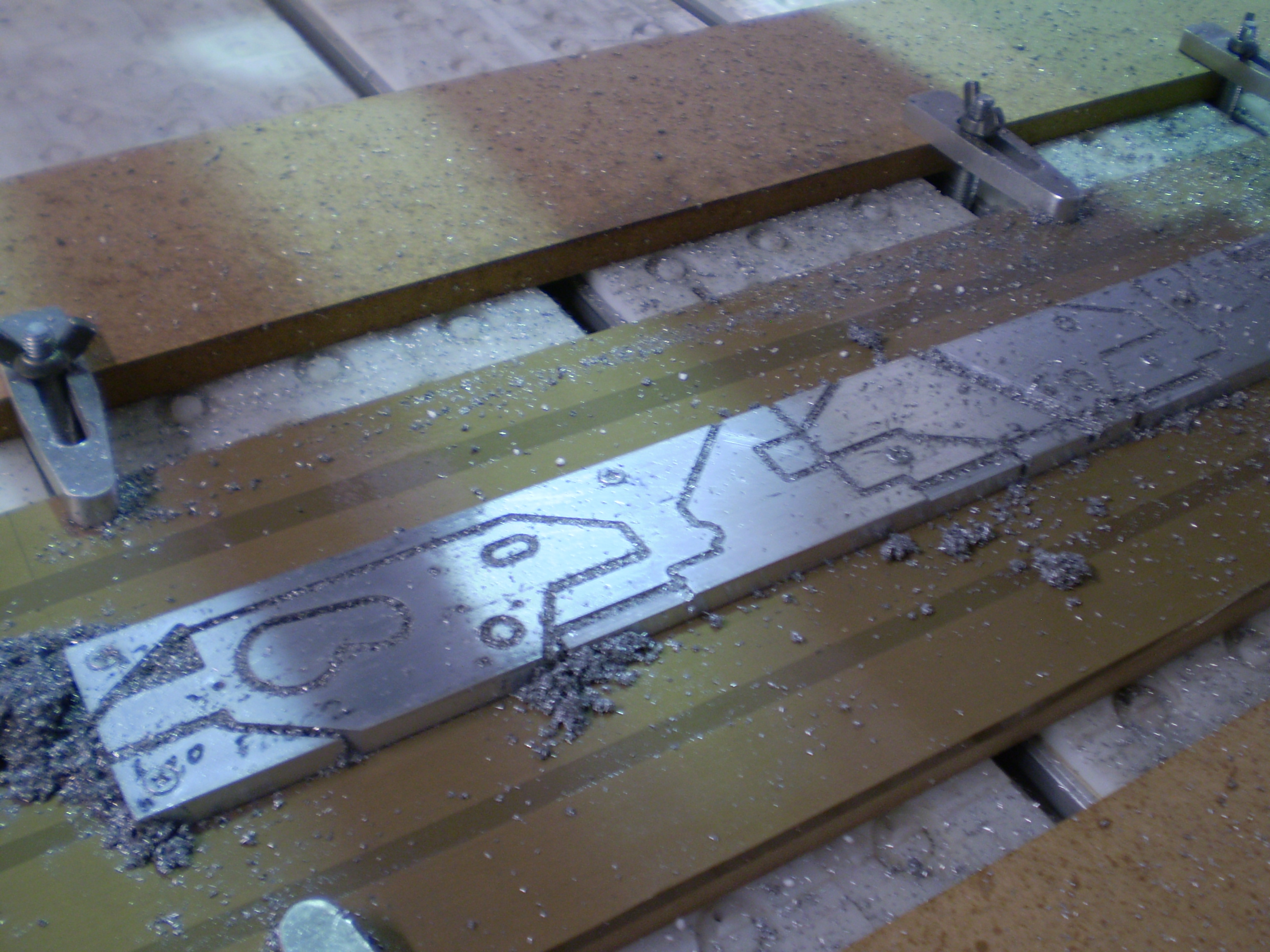

The software we used to create the toolpaths did not offer enough flexibility to let us specify where to place brigdes to hold the cut parts in place. As a result we decided to leave a half millimeter skin holding the parts and separated them afterwards.

OLYMPUS DIGITAL CAMERA

Workflow and Planning

The richness and openness of the environment at a fabrication shop like a fablab can quickly draw your focus away from your main objectives. There will be plenty of experiences to share and projects to admire and, unless you prepare yourself with a robust work plan, you might end up not using your time and available tools in the most efficient way.

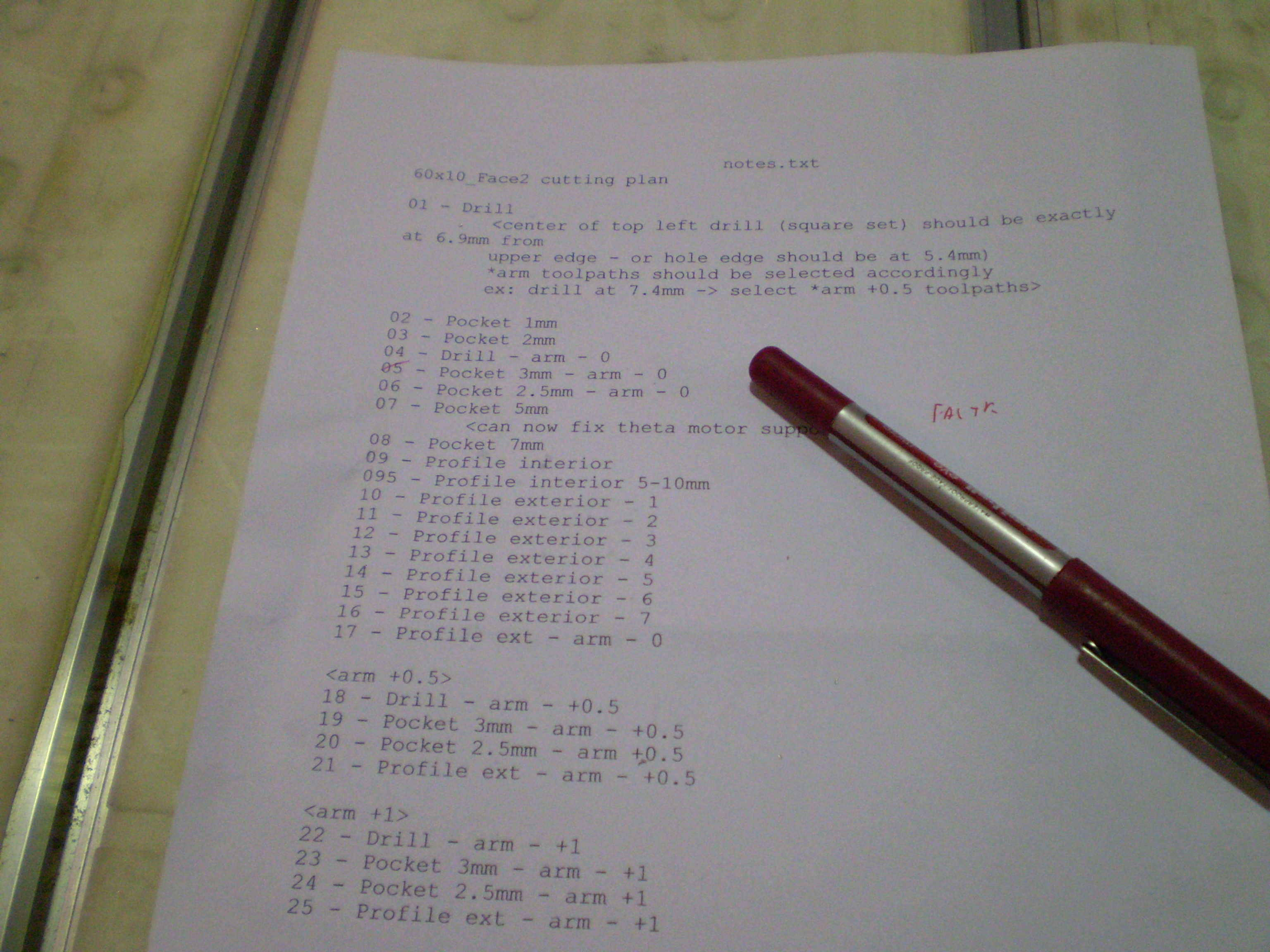

Before a visit to the fabrication shop I usually try to:

  • have a detailed plan for the tasks I want to execute;
  • mentally rehearse and visualize all the tasks, the tools needed and all the contingencies which are likely to happen (like a broken mill, unavailable PCs, a corrupted file, etc.);
  • prepare a checklist on the day before and make sure I am carrying everything I might need;

OLYMPUS DIGITAL CAMERA

 Finishing

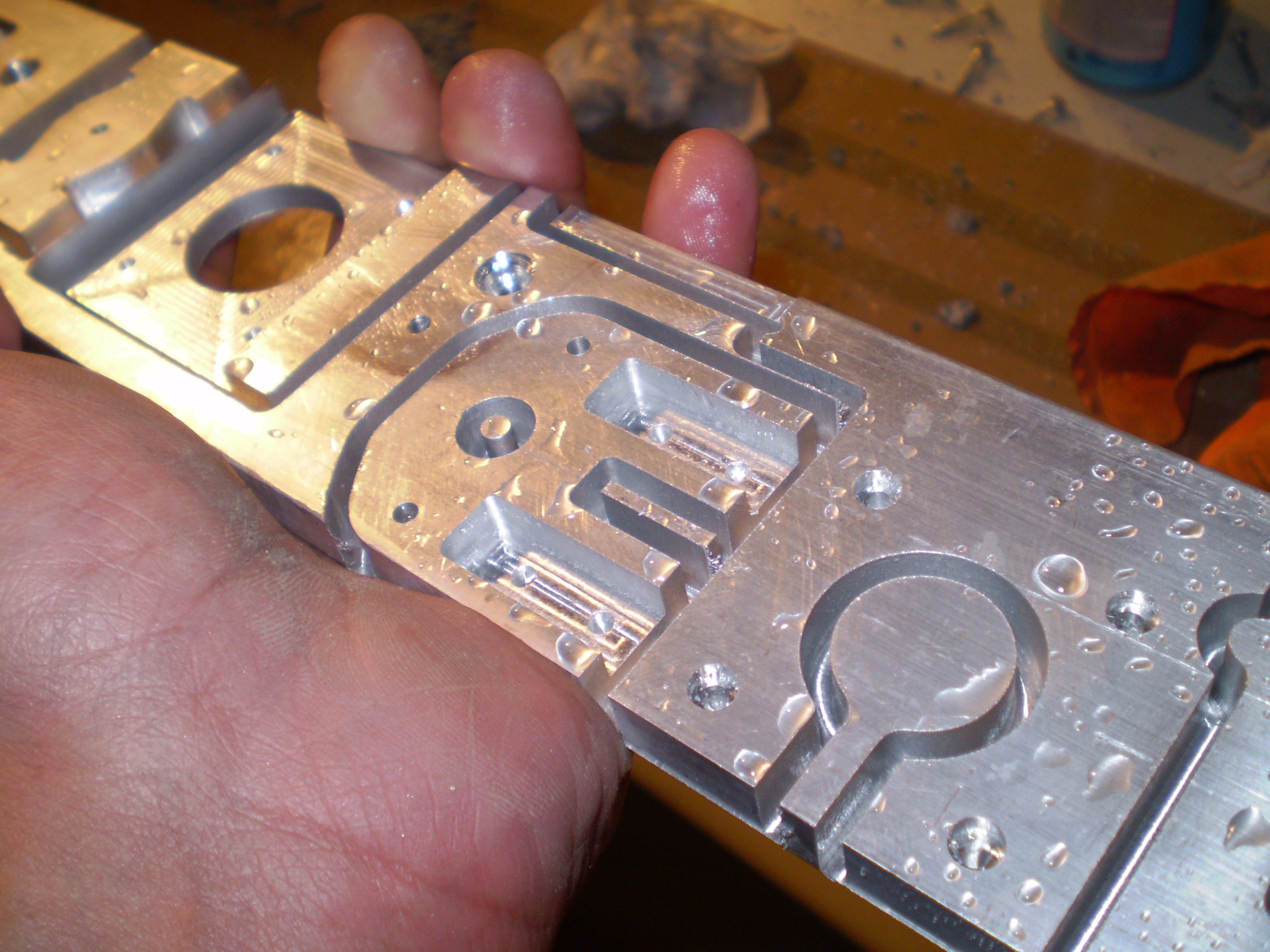

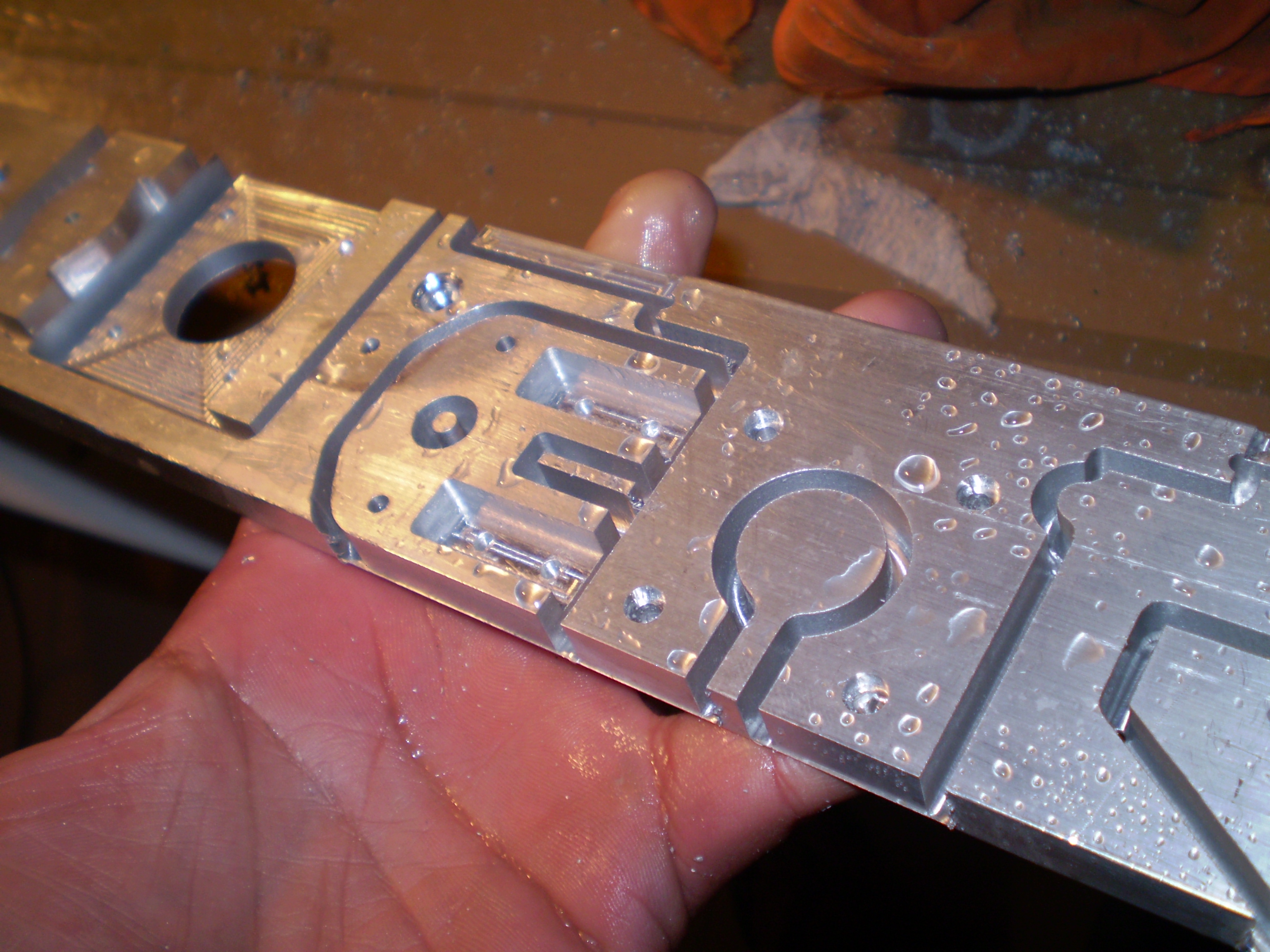

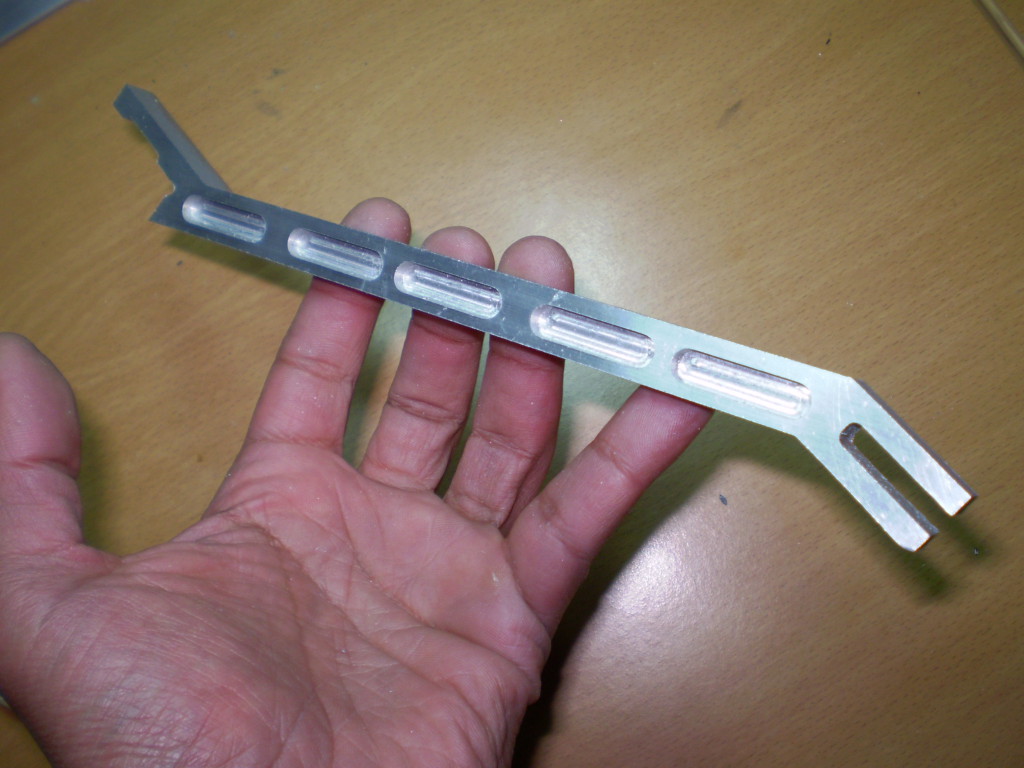

Most of the times the freshly cut parts needed extensive finishing before being ready for assembly, specially because we insisted on leaving a half-millimeter thick “skin” at the bottom of the cuts to hold the parts together.

OLYMPUS DIGITAL CAMERA

For that we used a Dremel and a mill tool to trim away the skin with the assistance of a steel guide to avoid cutting into the part. A final touch with a file and sand paper gave the part an acceptable finish to move it to the test assembly phases.

OLYMPUS DIGITAL CAMERA

Fixing parts together

We looked for some time into the possibility of welding the aluminum parts. However due to design constraints which dictated that some assemblies would have to be disassembled for maintenance, we drill and tapped holes and used mostly DIN 7984 M4 screws to fix everything together.

OLYMPUS DIGITAL CAMERA

Only time will tell if the joints are strong enough to withstand vibrations during normal operation.OLYMPUS DIGITAL CAMERA

voind robot – design and fabrication overview

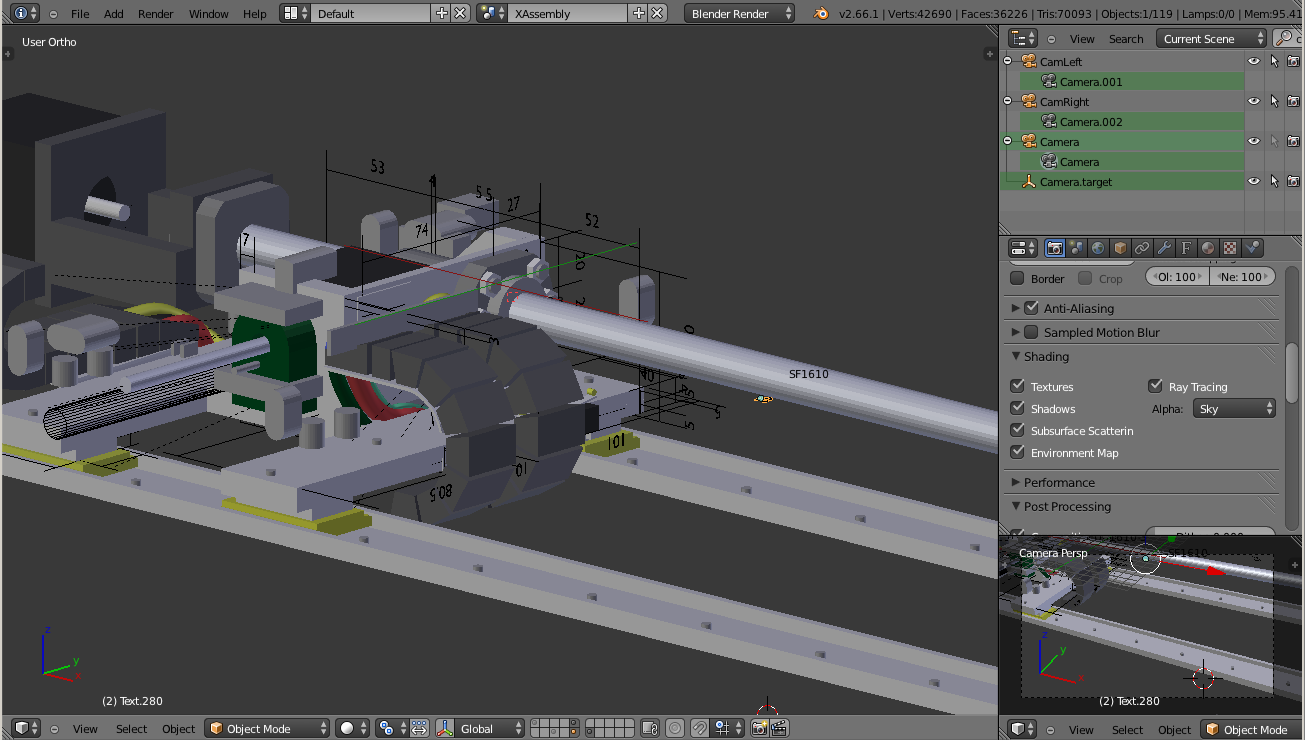

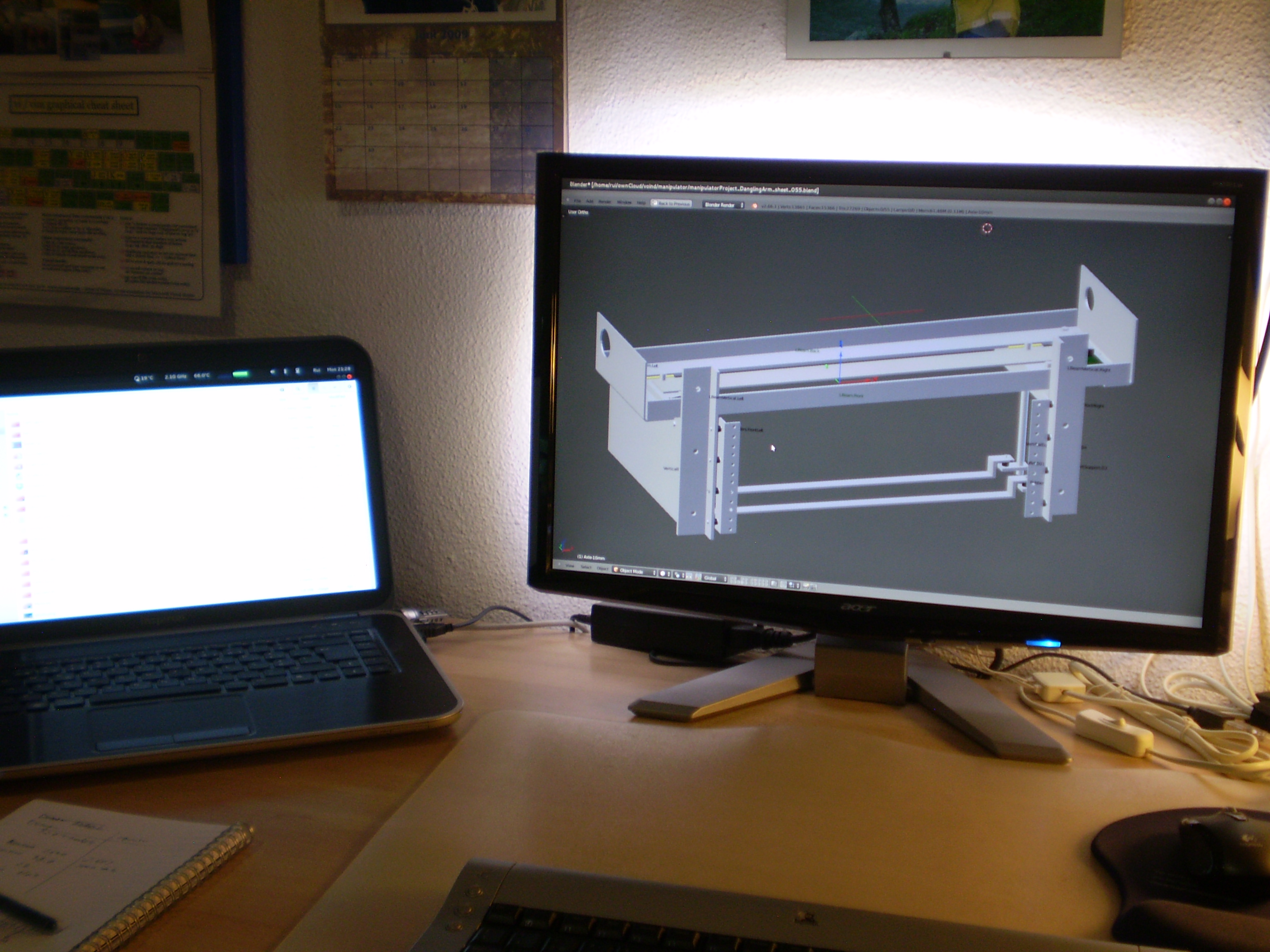

The voind robot concept was developed virtually in great detail even before a single part was produced, enabling us to work out the best arrangements to achieve a compact footprint (9 cm in height) for the sliding carriage assemblies. This part of the design was done using the excellent open source 3d design and animation package blender.

blender_screenshot_001

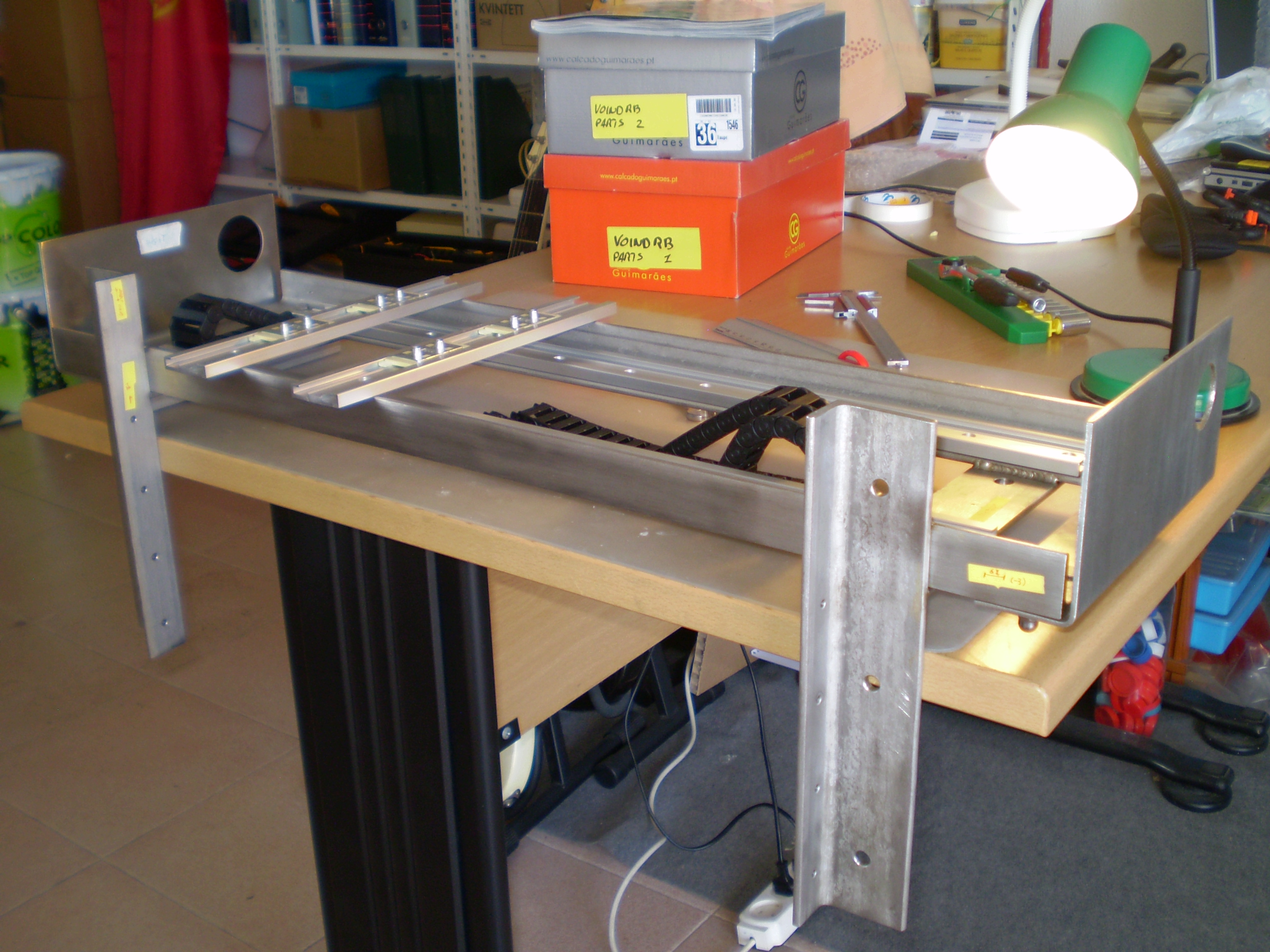

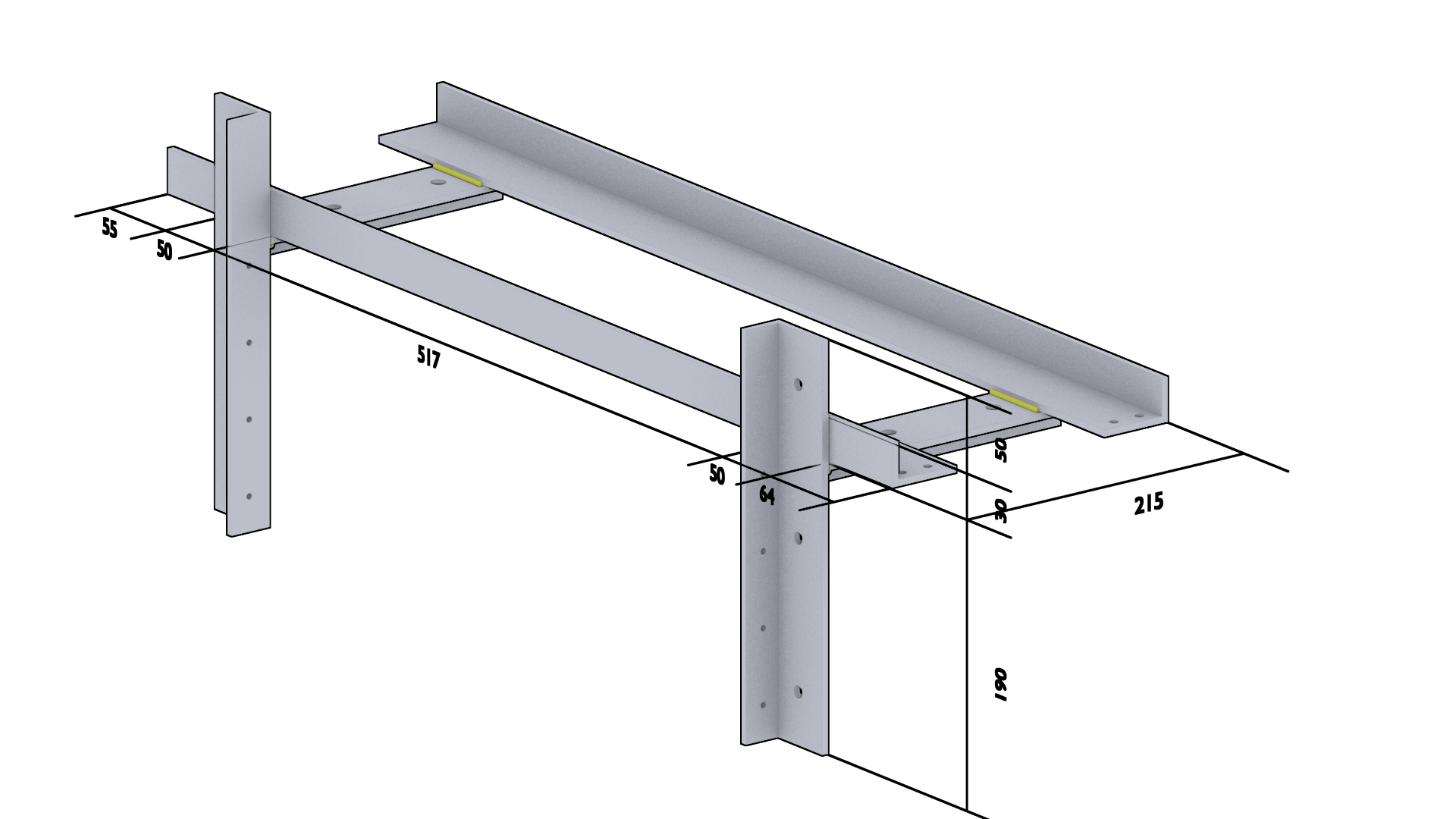

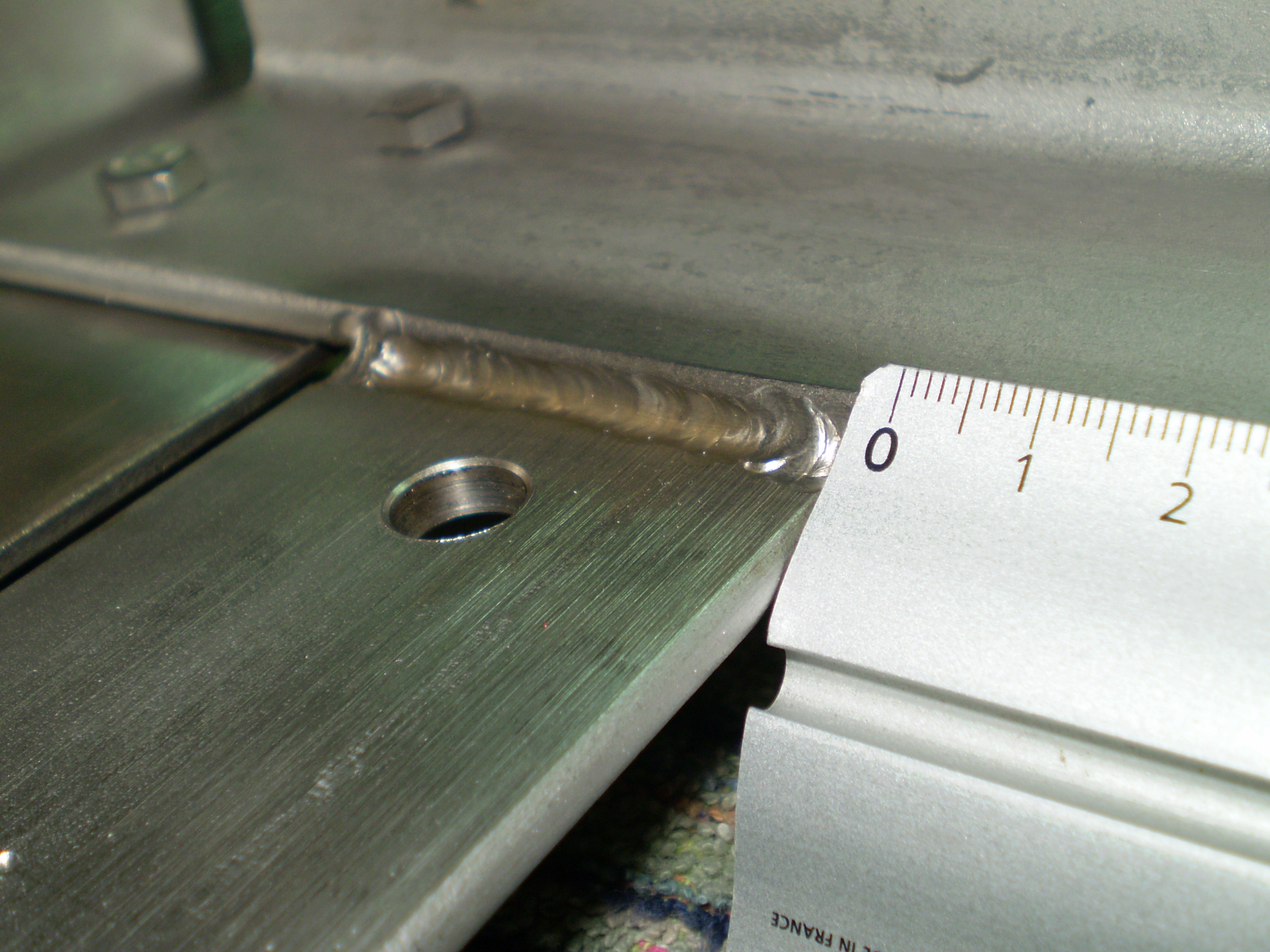

Once the overall chassis dimensions were established we produced the technical drawings and sourced the chassis fabrication and welding – stainless steel and tig welding.

Chassi_Paralel_001_measured

OLYMPUS DIGITAL CAMERA
OLYMPUS DIGITAL CAMERA

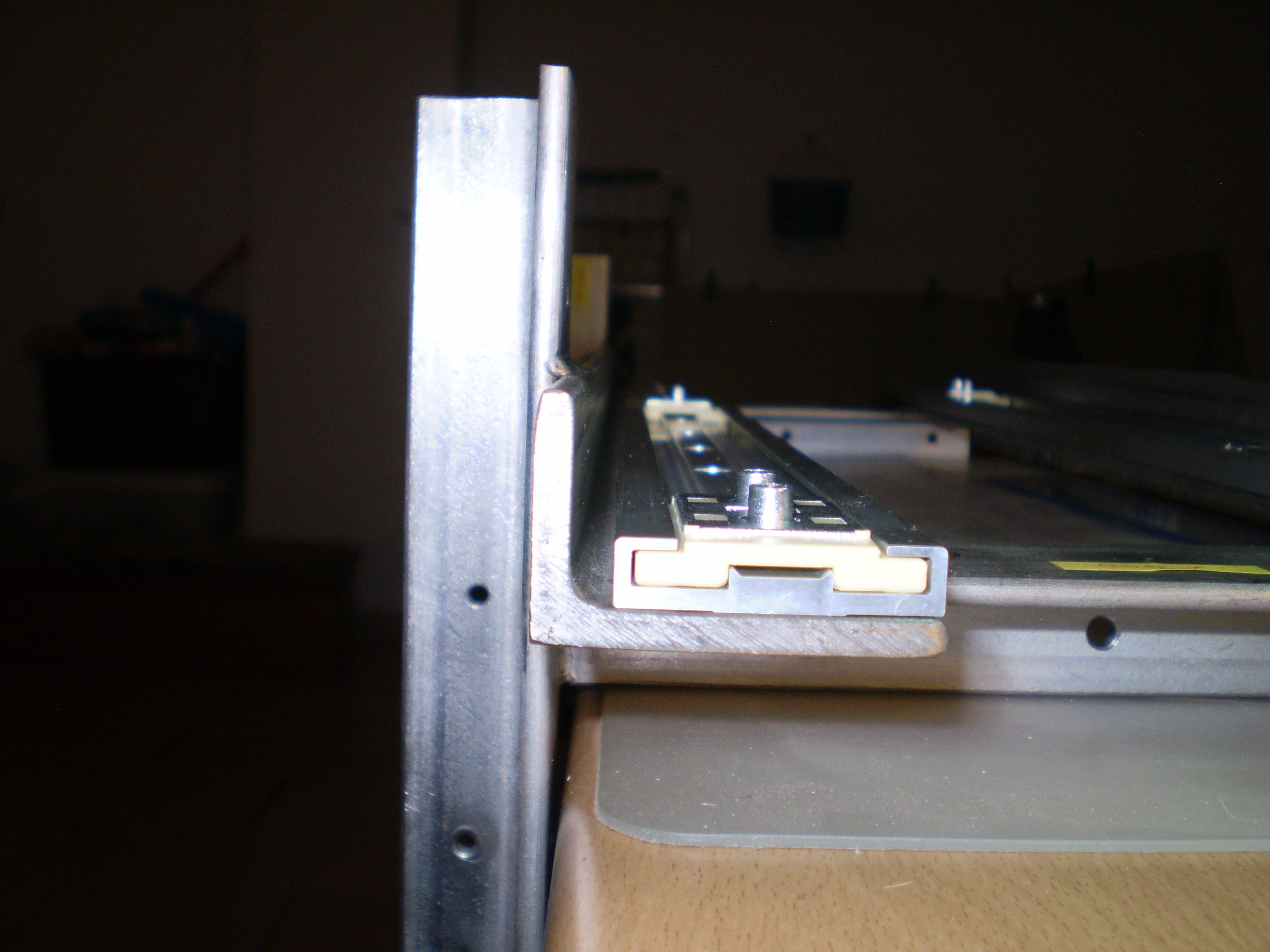

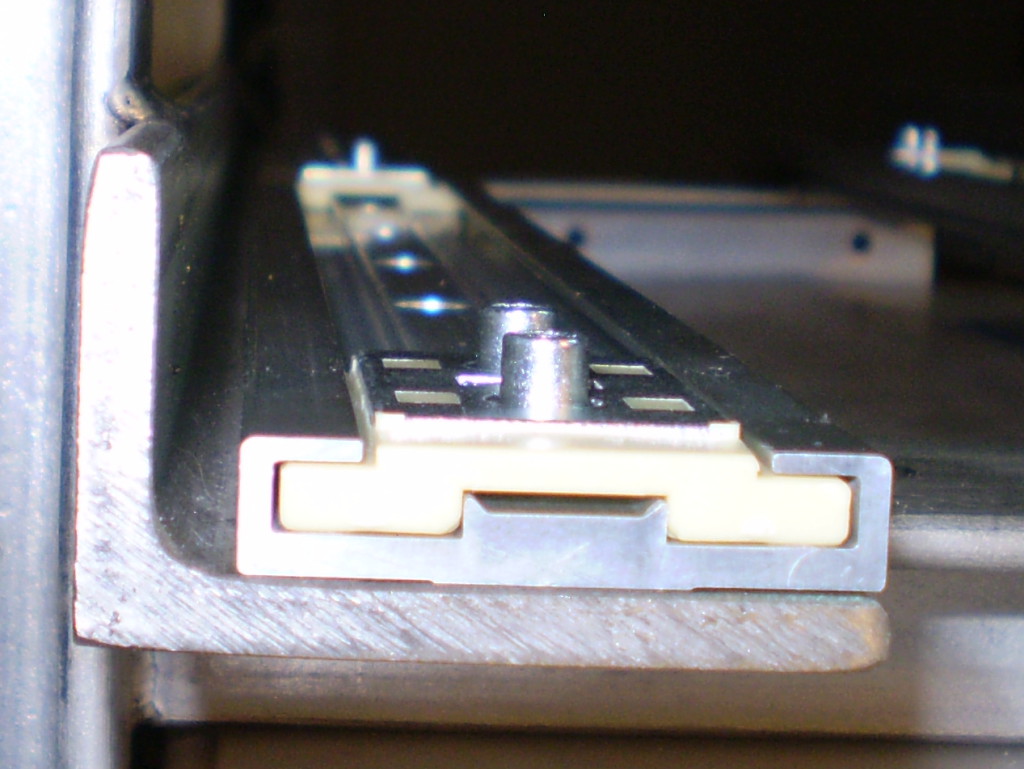

We chose to use a low profile linear guide system from igus, allowing us to fit the entire X-Y carriages and motors within a 90 mm height.

OLYMPUS DIGITAL CAMERA

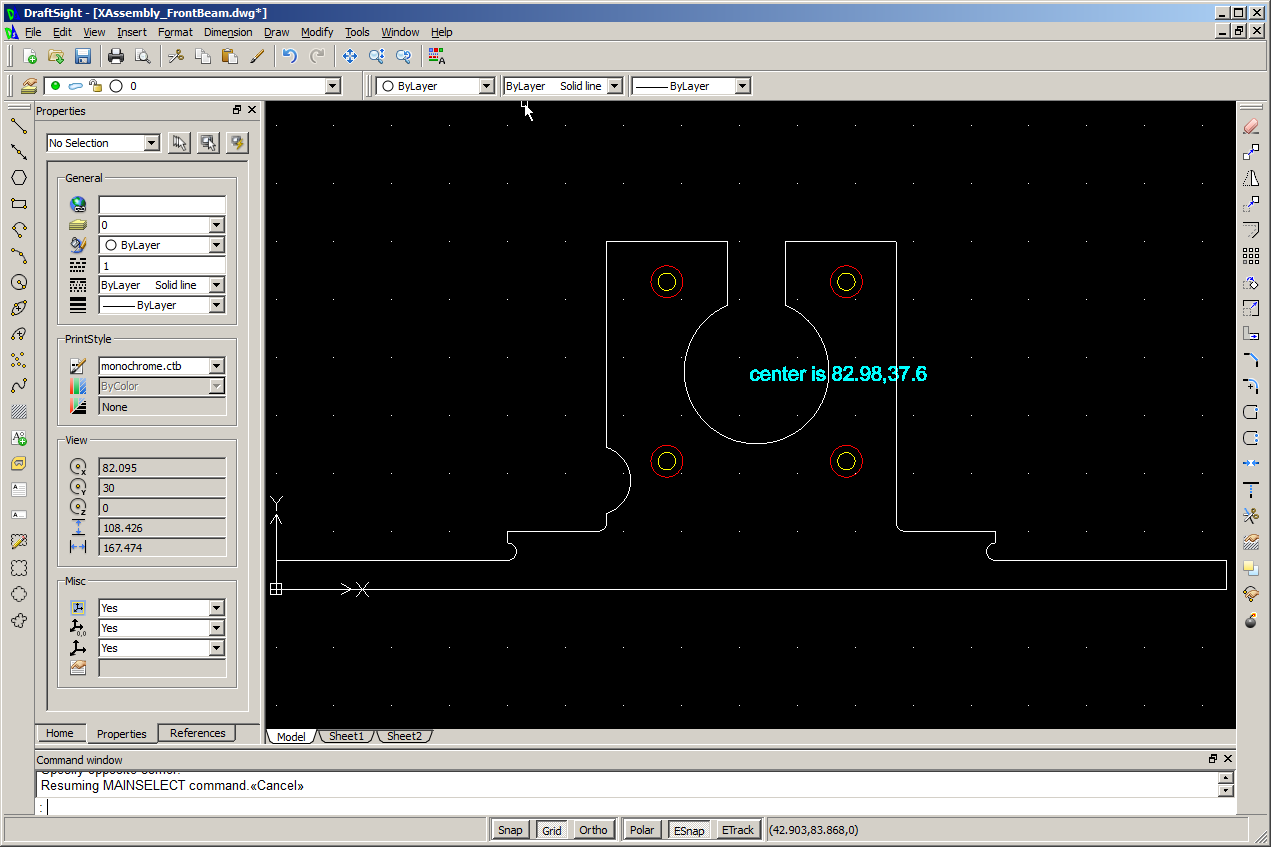

For the aluminum parts we produced the 2.5d drawings using DraftSight

DraftSight_screenshot_001

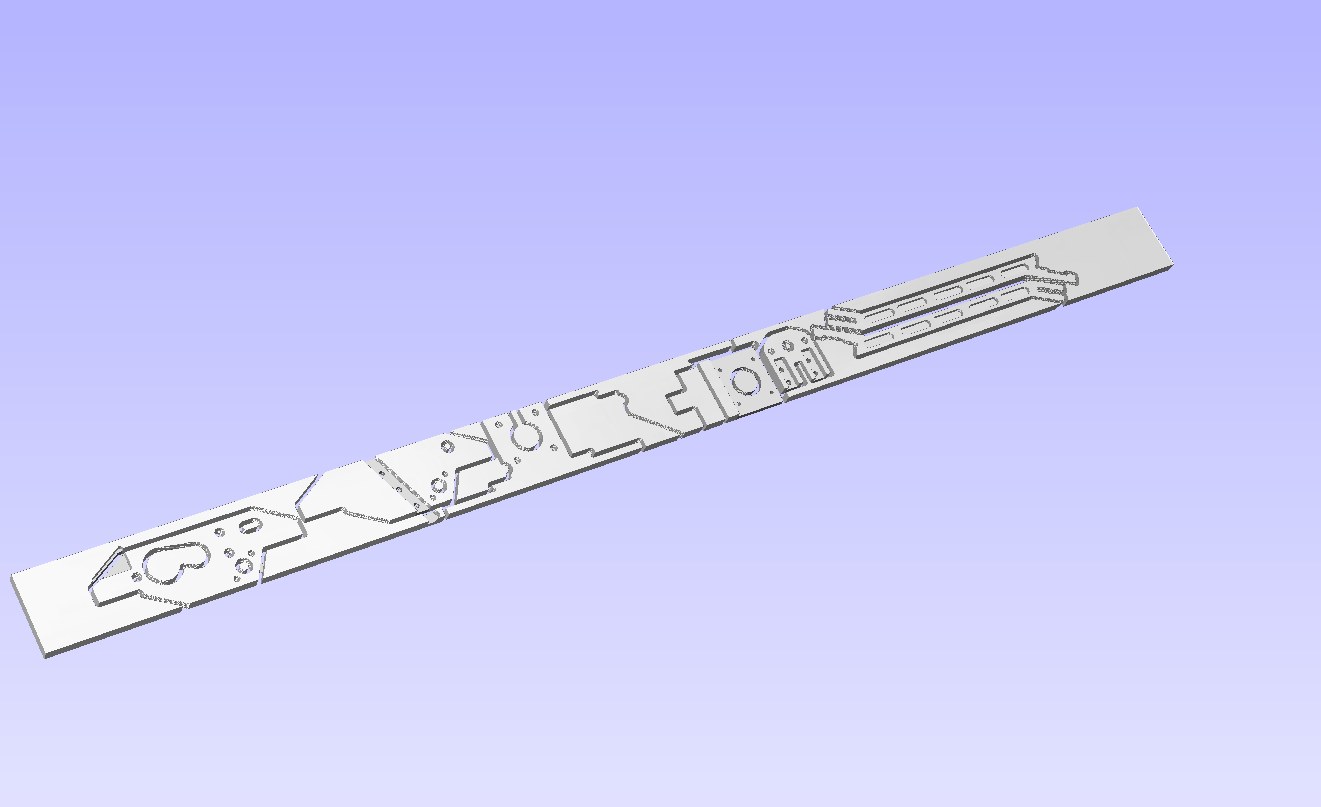

These drawings were then combined and laid down for cutting and machining from stock aluminum bars.

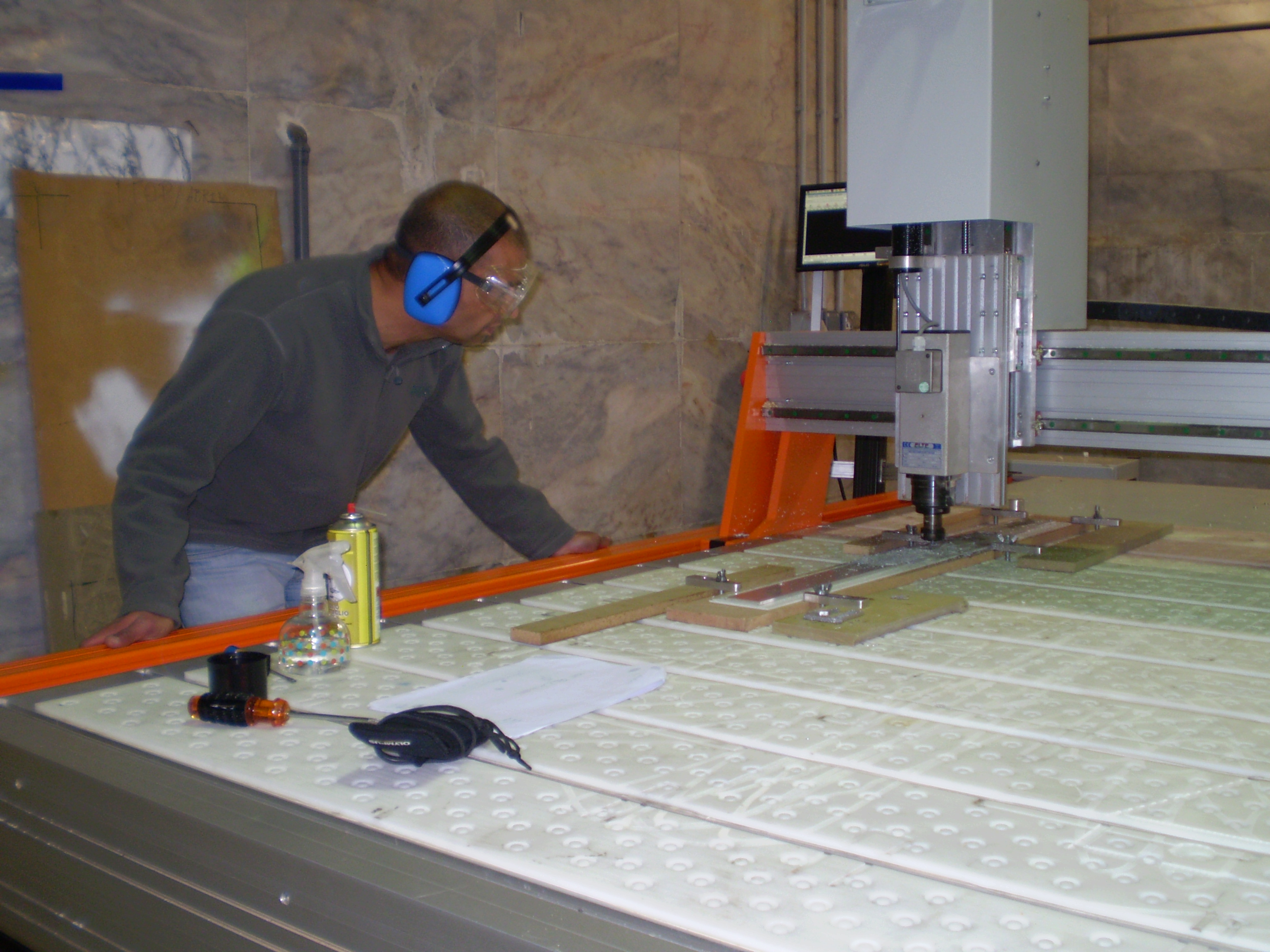

The parts were machined from 6060 aluminum bars with the help and resources of fablab Lisboa, in particular using their Ouplan milling machine.

OLYMPUS DIGITAL CAMERA
3dview

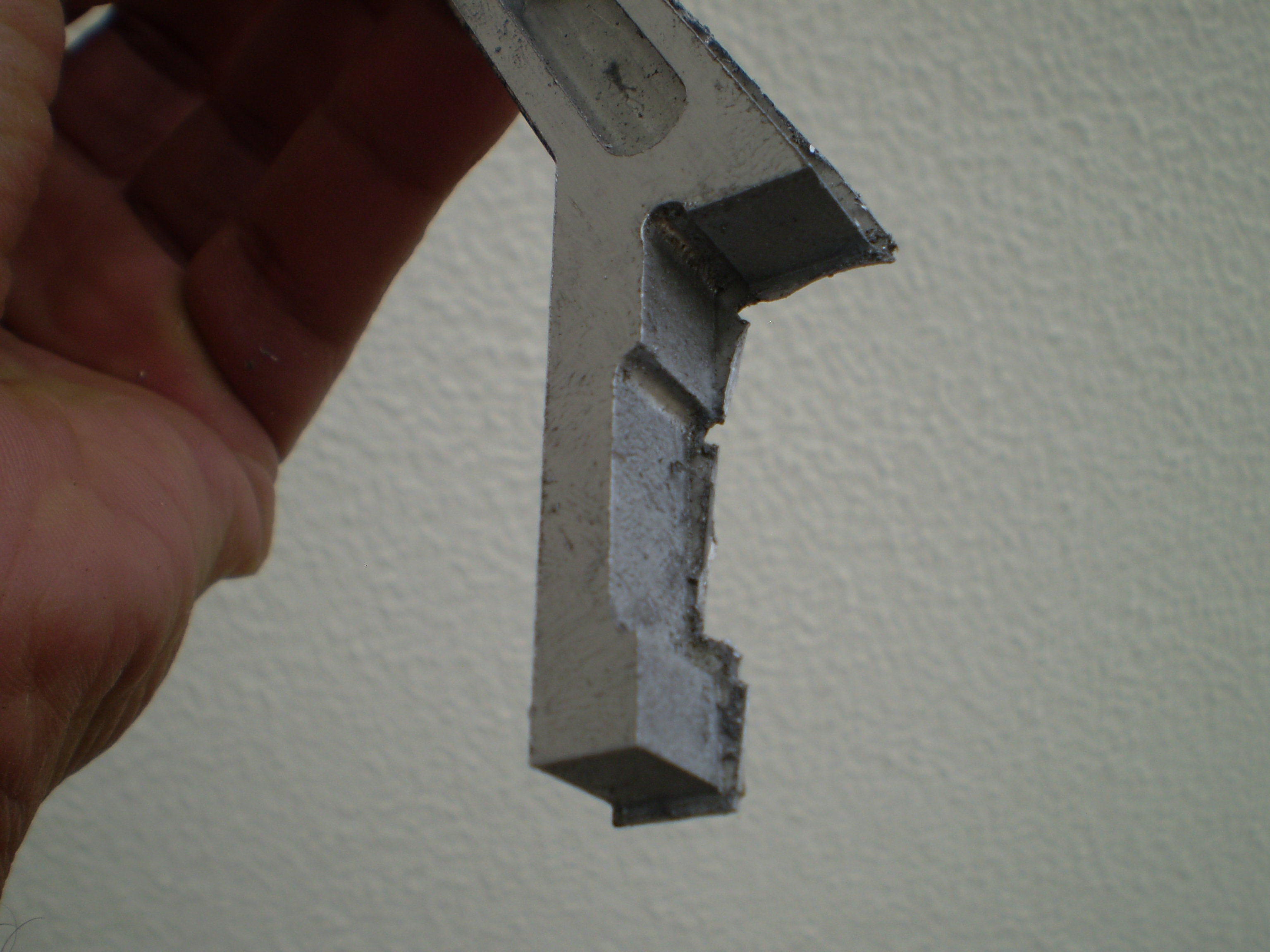

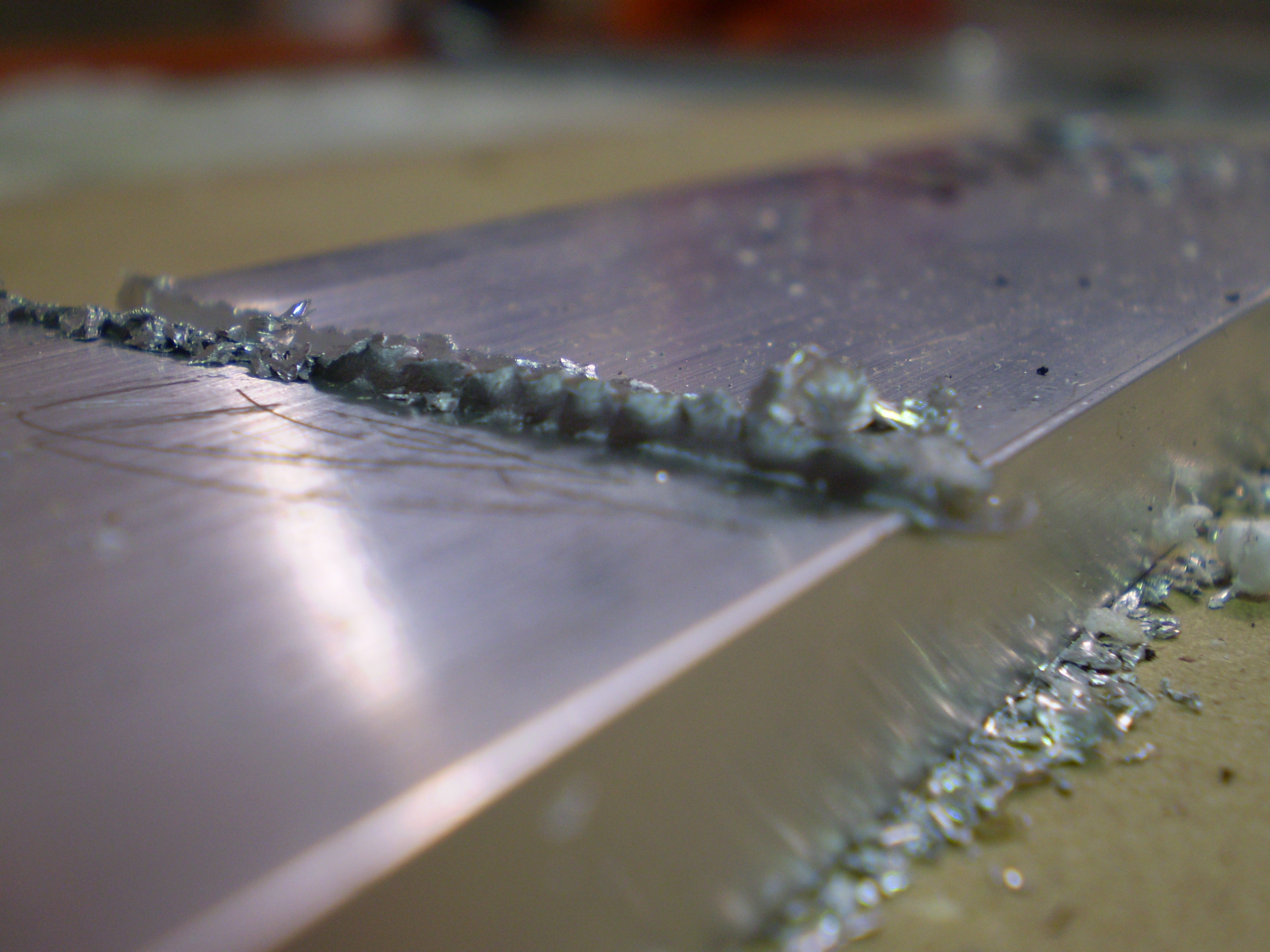

First attempts at cutting aluminum were disastrous!

OLYMPUS DIGITAL CAMERA

After some tests we settled on conservative settings and HSS/CO 3mm cylindrical end mills:

  • Spindle: 5500 rpm
  • Feed rate: 5mm/s
  • Stepover: 1.2mm
  • Stepdown: 0.75mm

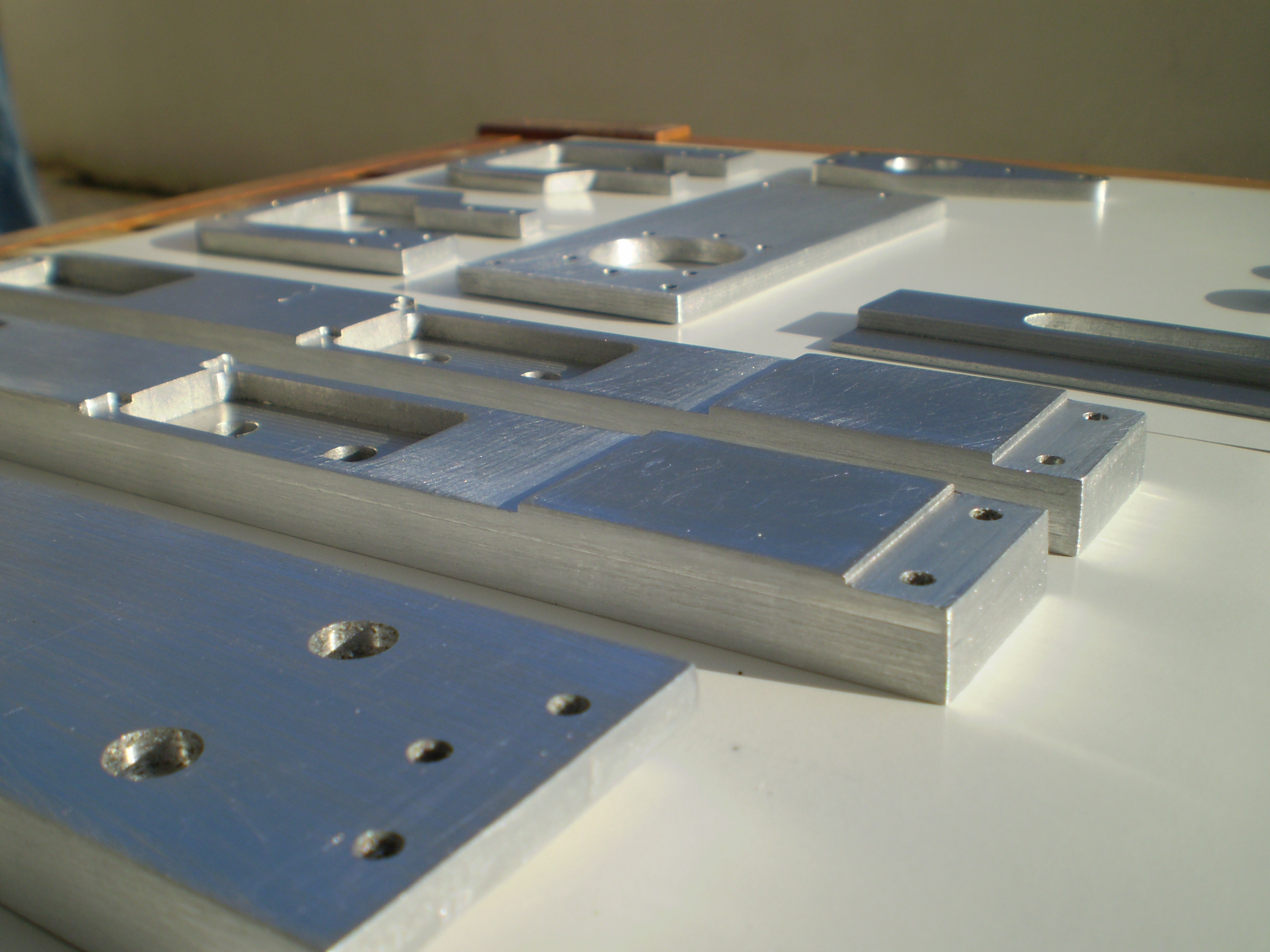

A sequence of machining sessions followed – totaling around 20 hours – during which the majority of aluminum parts were cut.

OLYMPUS DIGITAL CAMERA
OLYMPUS DIGITAL CAMERA
OLYMPUS DIGITAL CAMERA



OLYMPUS DIGITAL CAMERA

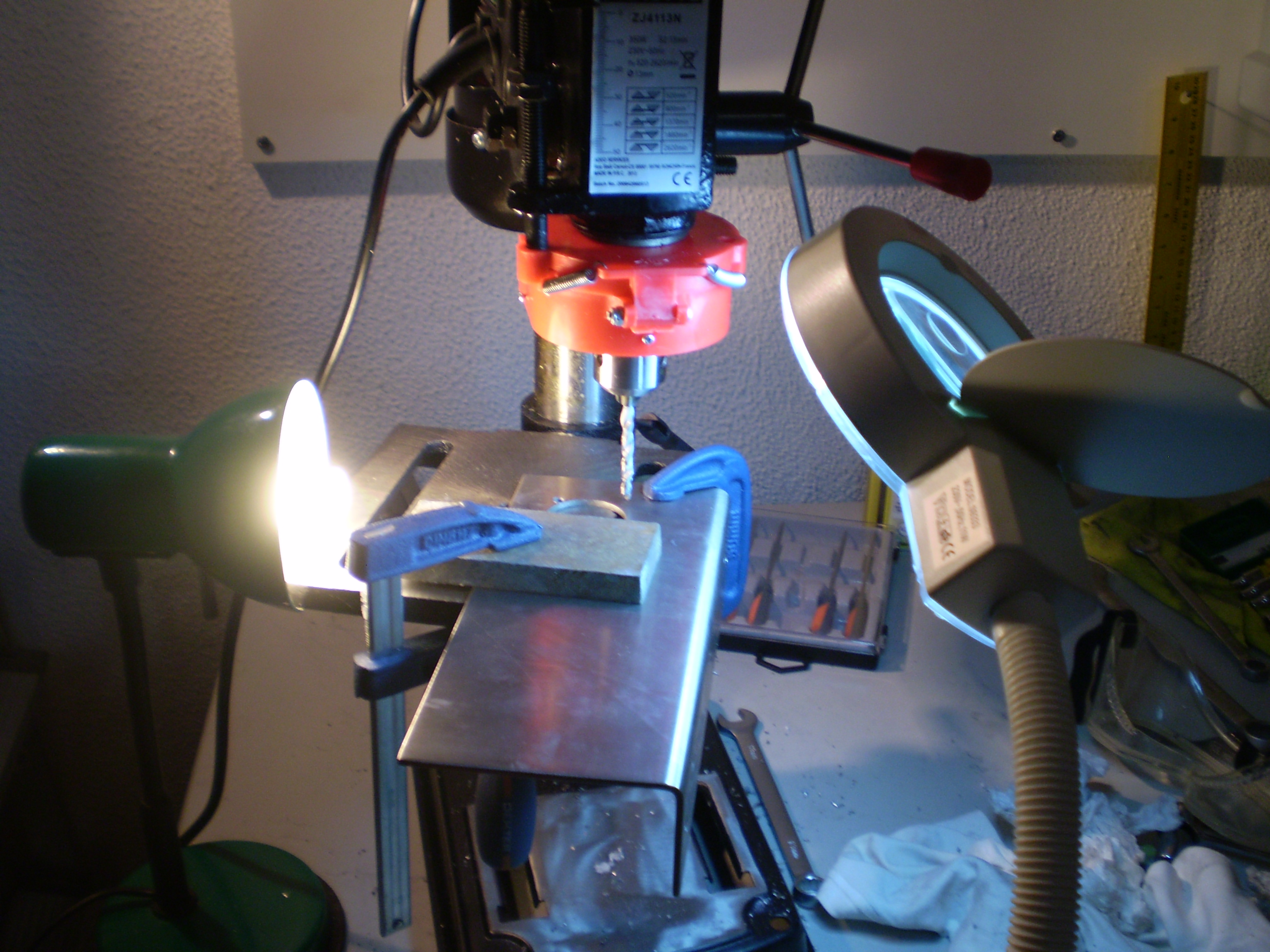

We tried to keep the maximum possible dimensional accuracy with the tools at our disposal. This meant that sometimes we would be positioning a part for over 10 minutes only to perform a single drilling operation.

OLYMPUS DIGITAL CAMERA

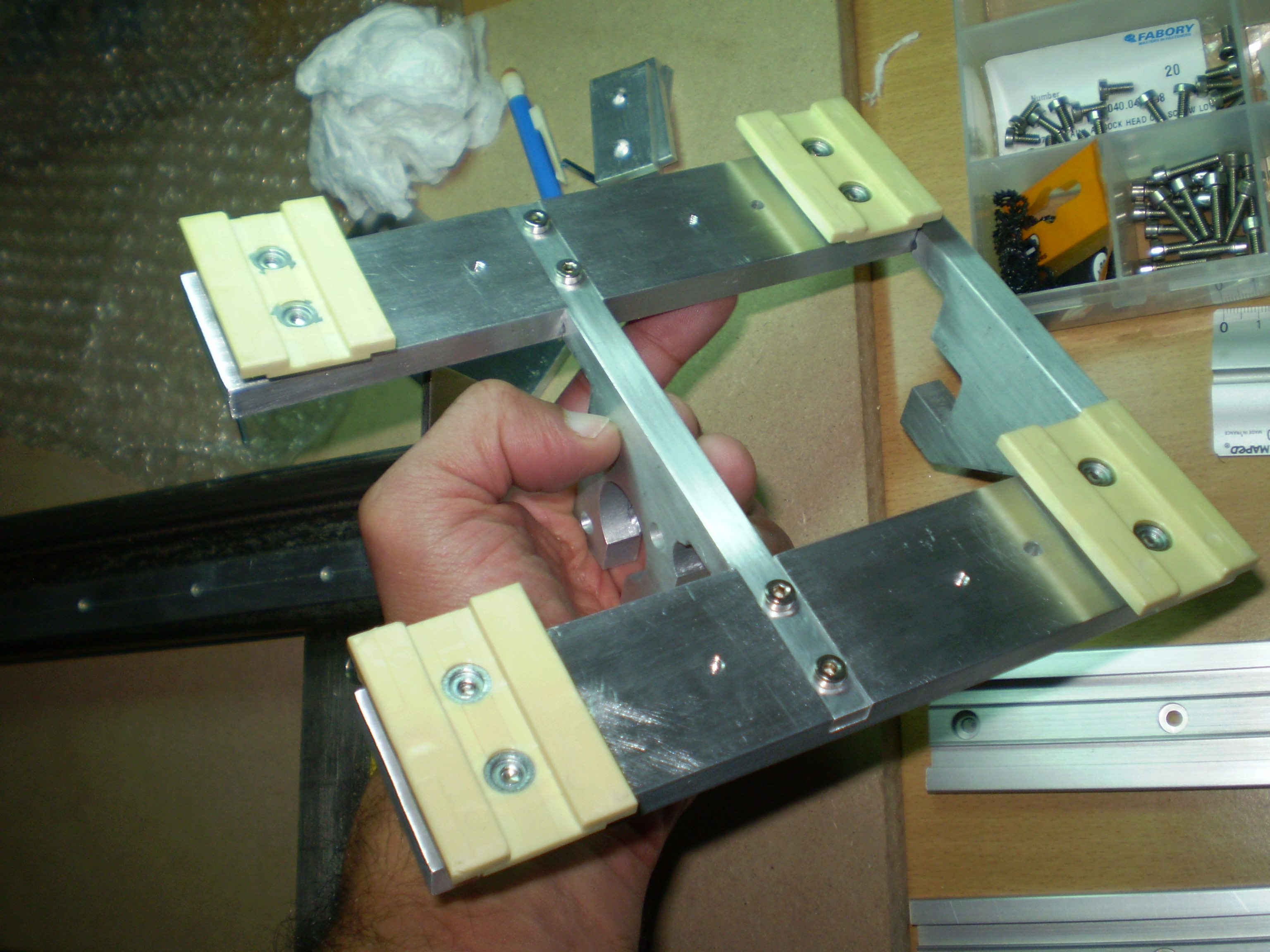

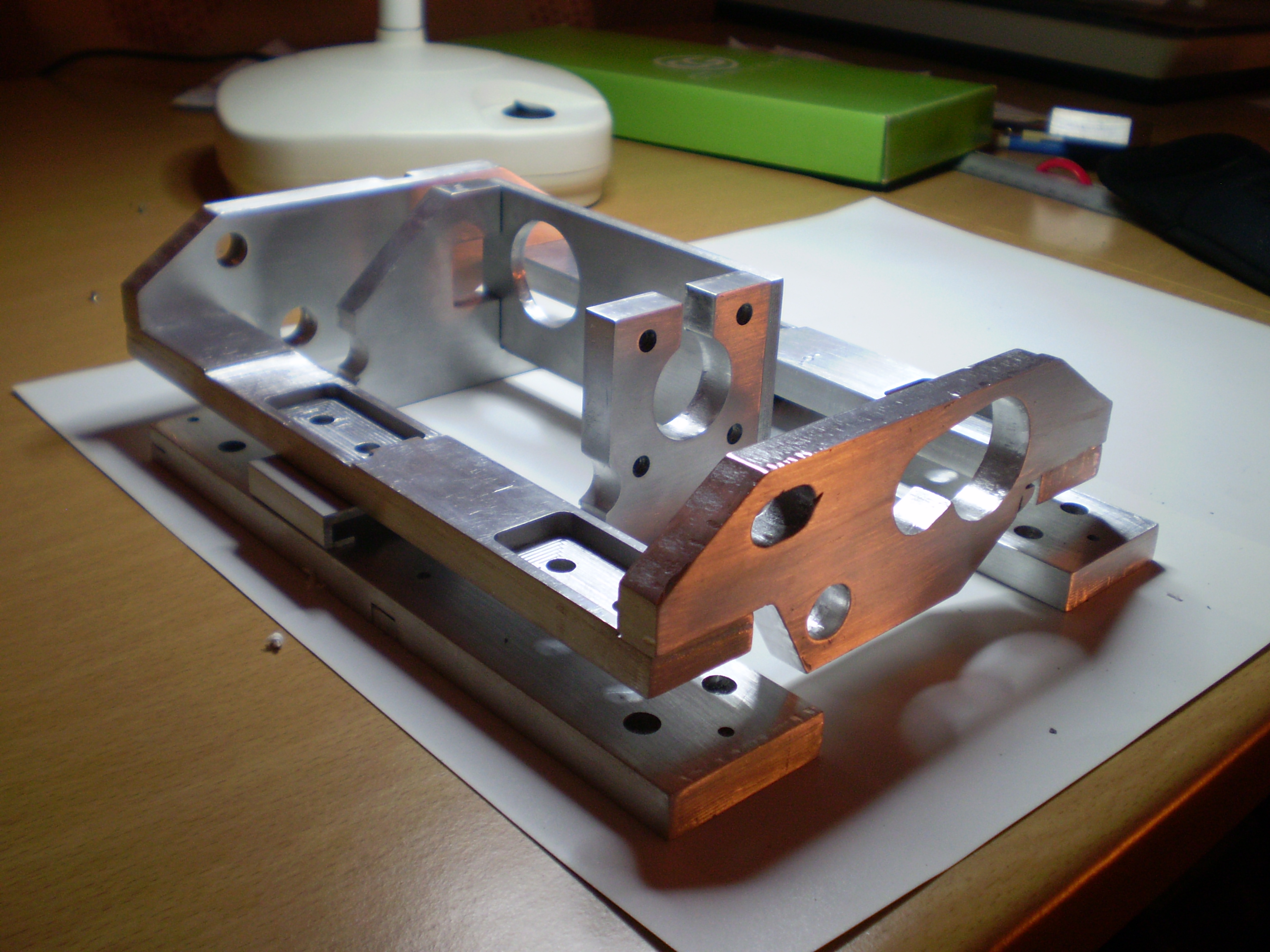

As soon as the first aluminum parts were fabricated we proceeded into initial tests of the assembly fits. These tests validated the dimensional correctness of the parts and the overall clearances which were calculated during the early stages of the design.

OLYMPUS DIGITAL CAMERA

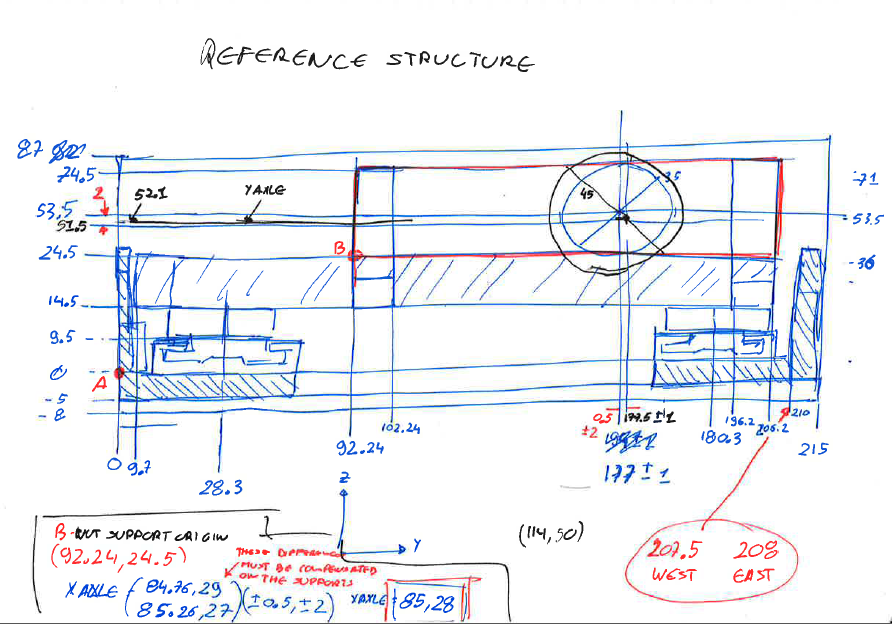

Reference_Structure

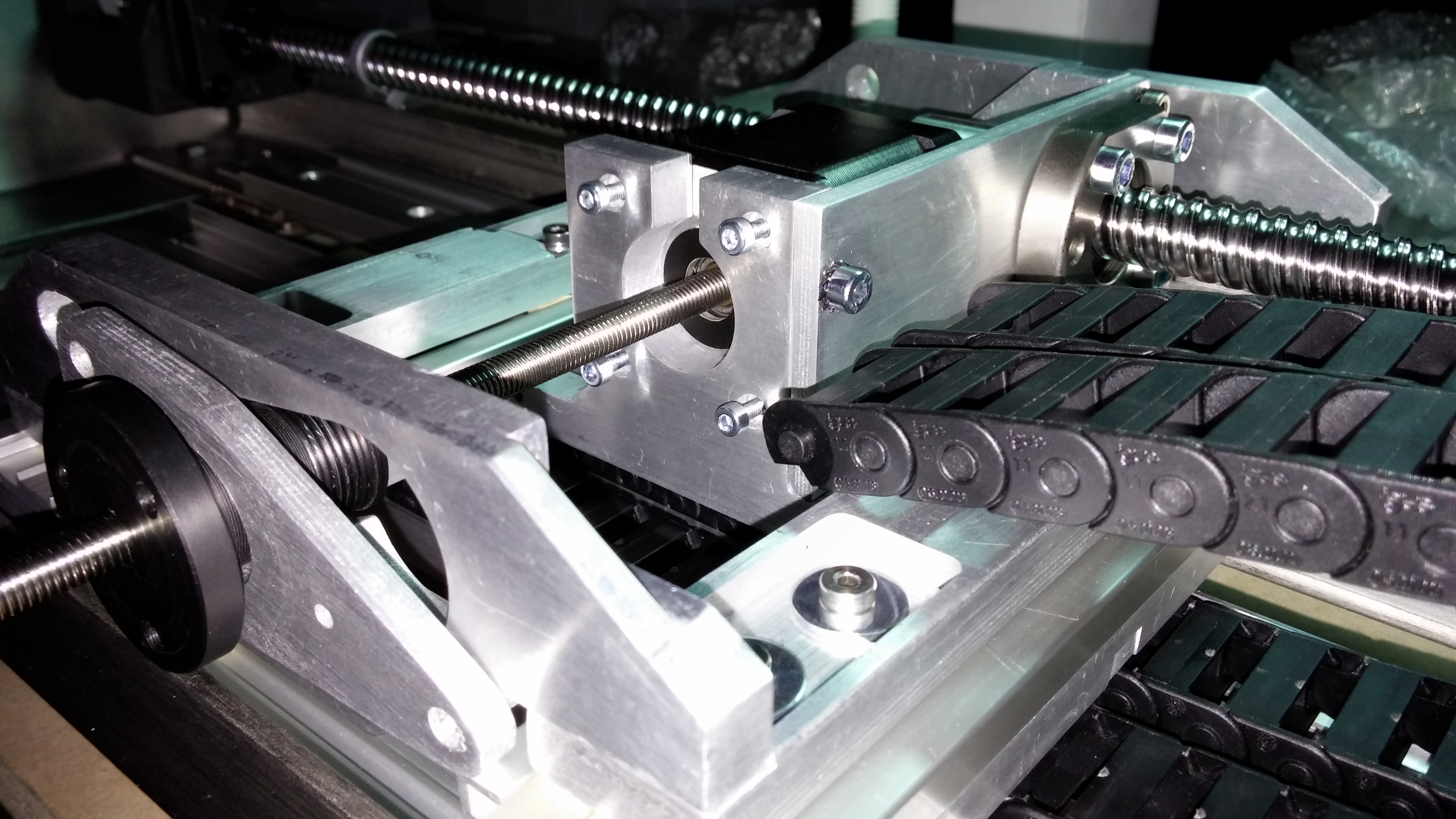

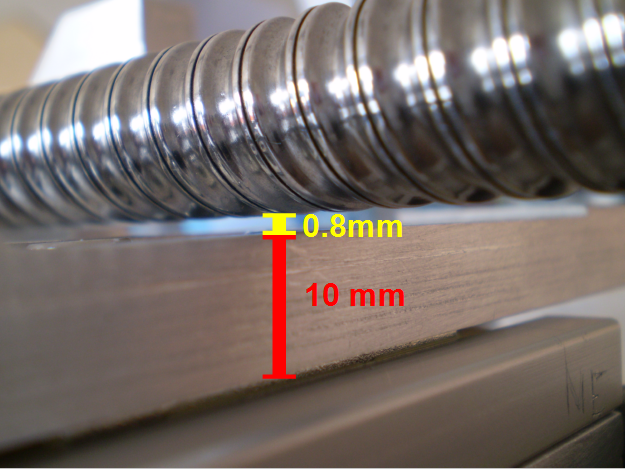

For example the clearance between the ballscrew and the surface of one of the parts is less than one millimeter across the entire width of the robot. This is one of several design decisions which allowed us to cram three DOFs (degrees of freedom) with motors and associated mechanics within a 9 cm height footprint.

Ballscrew_clearance

CAM00005

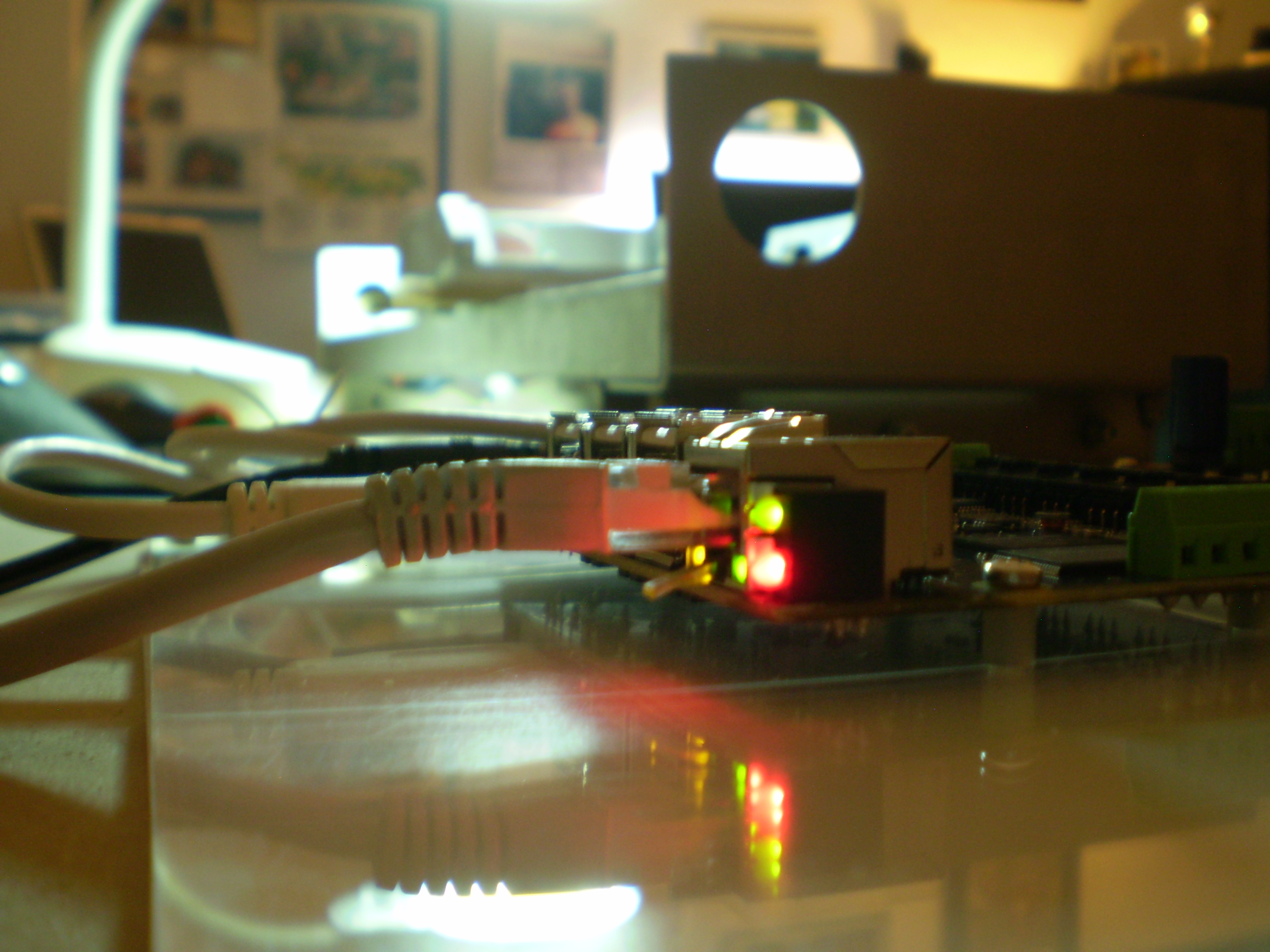

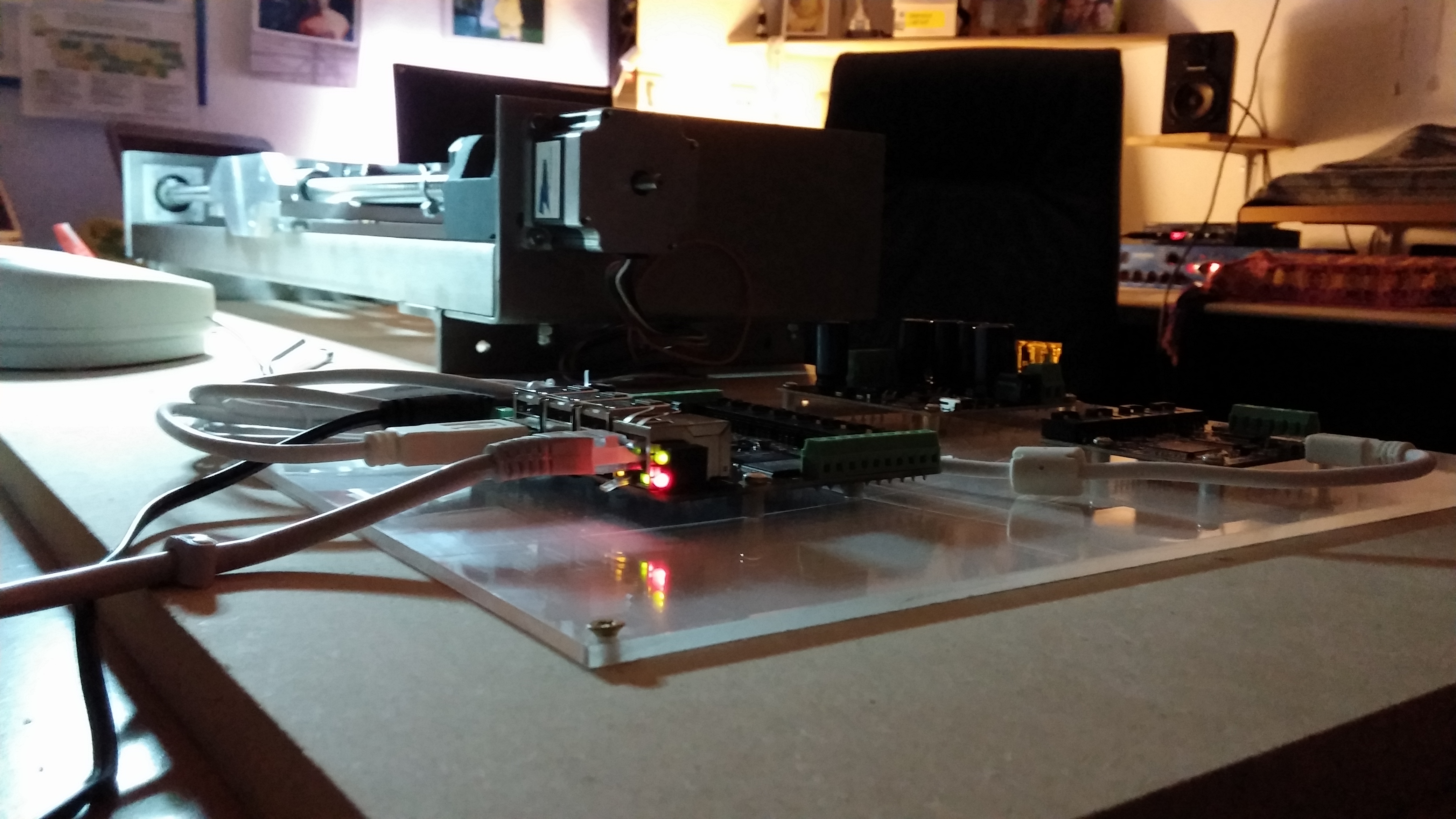

The control electronics is being built and tested side-by-side with the mechanical components. In due time it will be attached to the robot chassis but until then it is laid out on an area of the assembly zone protected by a plastic transparent cover.

OLYMPUS DIGITAL CAMERA

CAM00012

The voind robot – from concept to reality

One of the challenges that we faced since the inception of the voind concept was how to control and use audio equipment that has no MIDI interface nor any other means of being controlled electronically. This is especially relevant for audio vintage equipment which, as the surveys conducted during our participation on the Energia de Portugal 2013 acceleration program showed us, is an interesting application of the “remote use of audio equipment” concept.

After evaluating a number of options based on hobbyist and industrial robotic arms, and collaboration scenarios with local engineering universities, we decided to design and build it ourselves.

early_1
early_2
early_3

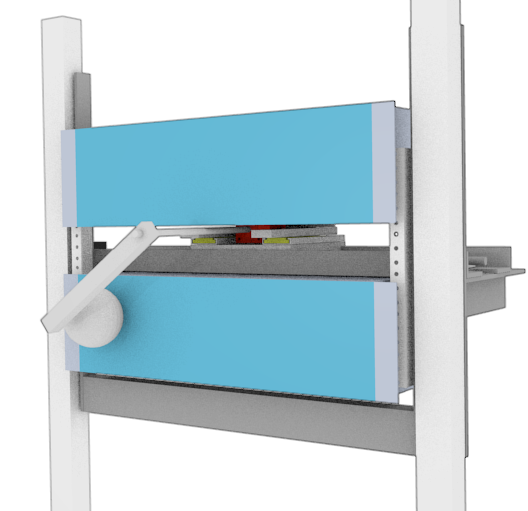

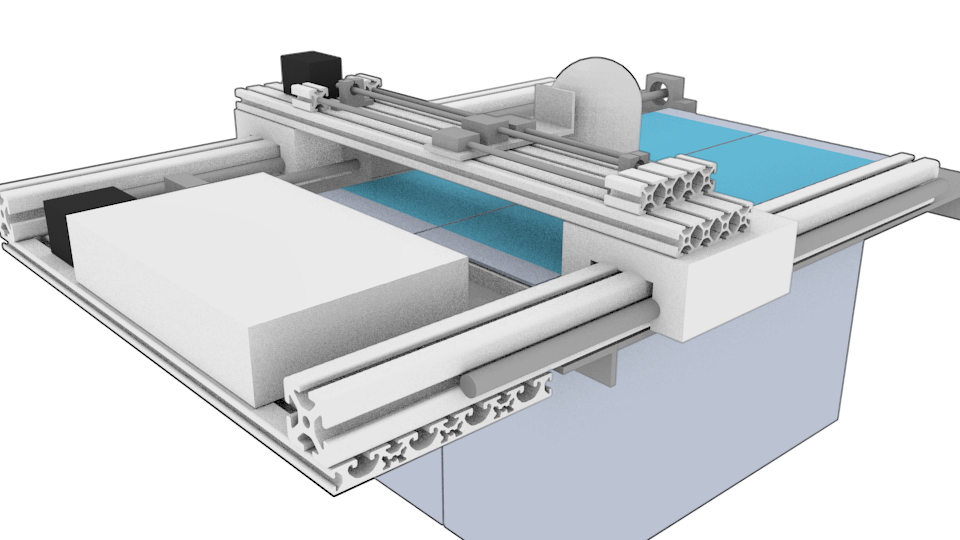

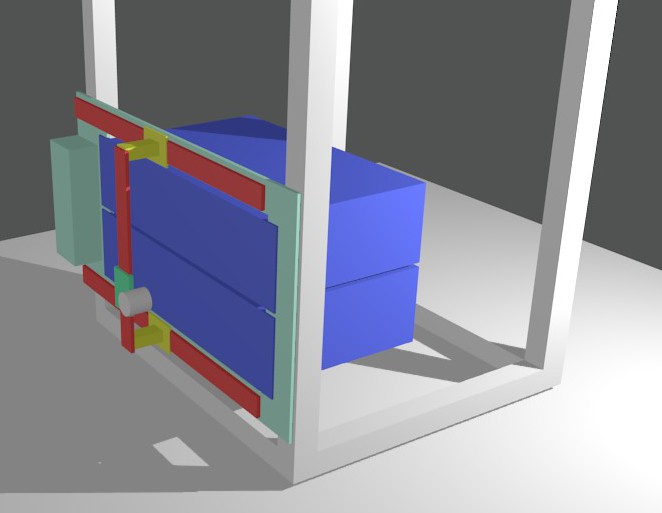

some of the early design concepts

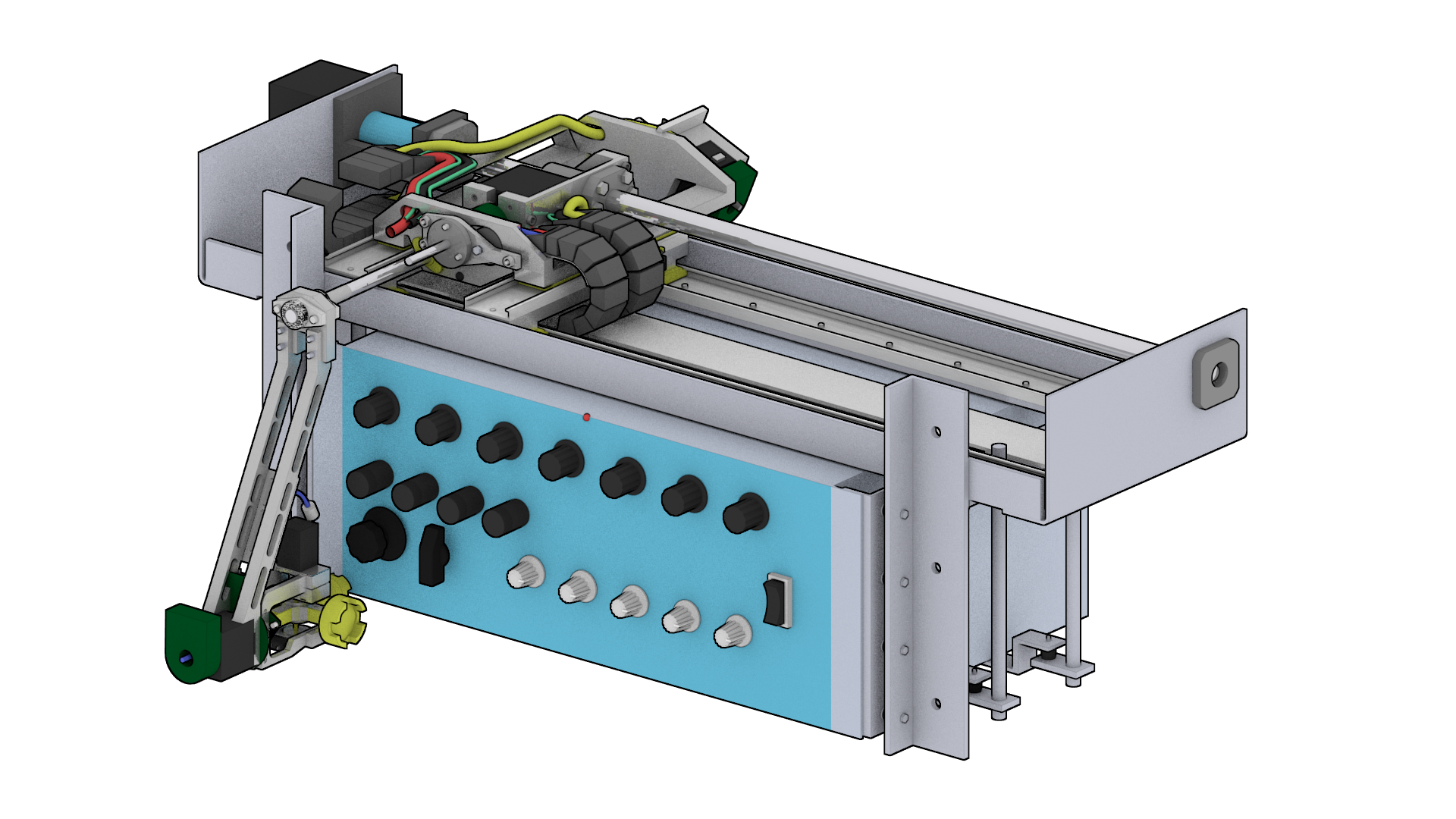

We settled on a design based on a rotating arm suspended from a horizontal guide in which the robot chassis would also provide the rack rails for 4Us of 19” rack equipment.

OLYMPUS DIGITAL CAMERA
overall

This project is being developed since August 2013. We will try to post regular progress updates on this same blog.
